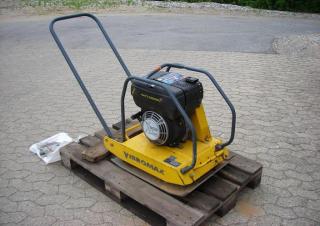

AV 1300 B Vibromax AV 1300 B Specifications & Technical Data (1996—2006)

Weight: 108kg – Centrifugal force: 18kN – Working width: 500mm – Vibrating frequency: 90Hz – Power source: B – Model series: AV

Vibratory Plate Compactors Single Direction Vibratory Plate Compactors Vibromax AV 1300 B

Technical specs - AV 1300 B Vibromax

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
108 kg
Centrifugal force
18 kN
Working width
500 mm
Vibrating frequency
90 Hz
Power source
B
Model series
AV
Engine manuf.
Honda
Engine type
GX160
Engine power
4 kW
Displacement
0.163 l
Revolutions at max torque
3600 rpm
No. of cylinders
1

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
