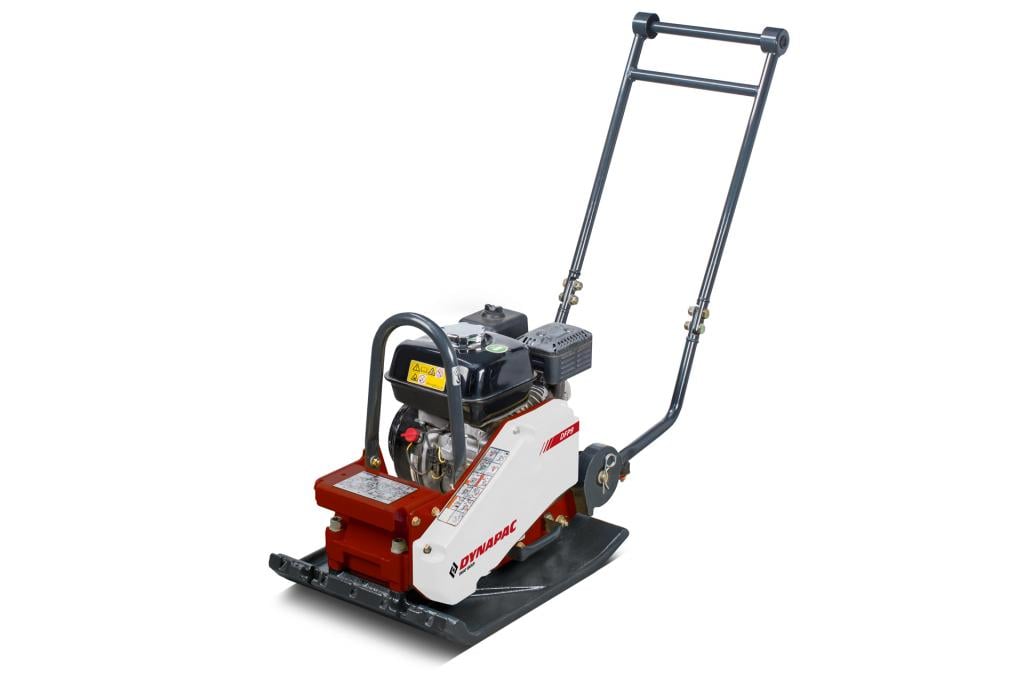

DFP9 Dynapac DFP9 Specifications & Technical Data (2024—2026)
Visit Dynapac live at
Technical specs - DFP9 Dynapac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 91 kg
- Centrifugal force
- 18 kN
- Working width
- 450 mm
- Vibrating frequency
- 90 Hz
- Power source
- B
- Model series
- DFP
- Engine manuf.
- Honda
- Engine type
- GX 160
- Engine power
- 3.6 kW
- Revolutions at max torque
- 3600 rpm
- No. of cylinders
- 1
- Emission level
- Stage V / CARB Phase lll
More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Download datasheets (PDF)
Events
Visit Dynapac live at
Buy & Rent
Compare Dynapac DFP9 with similar Single Direction Vibratory Plate Compactors
Dynapac DFP9
- Weight:
- 91 kg
- Centrifugal force:
- 18 kN
- Working width:
- 450 mm
- Vibrating frequency:
- 90 Hz
Breaker BK 80-09
- Weight:
- 106 kg
- Centrifugal force:
- 19 kN
- Working width:
- 620 mm
- Vibrating frequency:
- 96 Hz
Wacker WP 1540 AW
- Weight:
- 86 kg
- Centrifugal force:
- 15 kN
- Working width:
- 400 mm
- Vibrating frequency:
- 100 Hz
Dynapac LX 90
- Weight:
- 95 kg
- Centrifugal force:
- 16 kN
- Working width:
- 450 mm
- Vibrating frequency:
- 75 Hz
Palme PTK15/45B
- Weight:
- 96 kg
- Centrifugal force:
- 15 kN
- Working width:
- 450 mm
