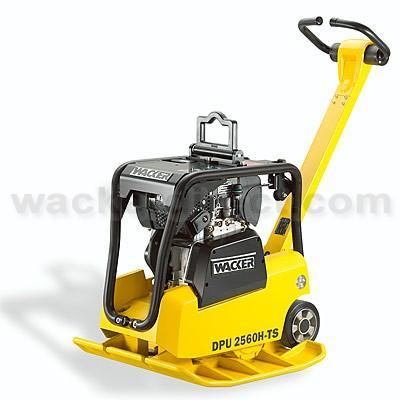

    Wacker DPU 2560 H-TS Specifications & Technical Data (2004-2008)

    Rate this machine now!

    Weight: 164kg – Centrifugal force: 25kN – Working width: 600mm – Vibrating frequency: 90Hz – Engine manuf.: Hatz – Engine type: 1B20

    Technical specs - DPU 2560 H-TS Wacker

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 164 kg
    • Centrifugal force 25 kN
    • Working width 600 mm
    • Vibrating frequency 90 Hz
    • Engine manuf. Hatz
    • Engine type 1B20
    • Engine power 3.4 kW
    • Displacement 0.232 l
    • Revolutions at max torque 3200 rpm

    More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
