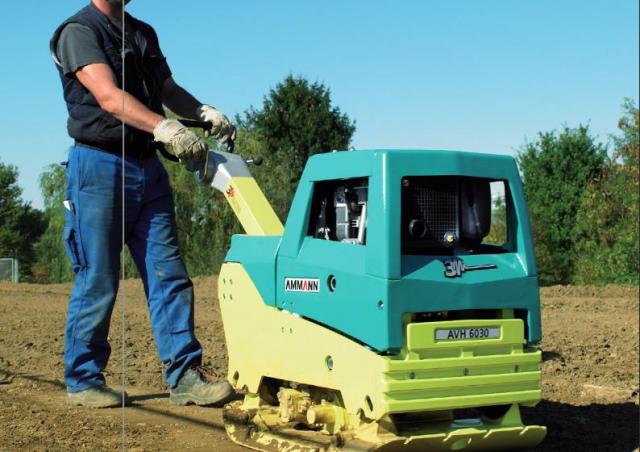

AVH 6030 Ammann AVH 6030 Specifications & Technical Data (2001—2011)

Weight: 480kg – Centrifugal force: 60kN – Working width: 550mm – Vibrating frequency: 52Hz – Power source: D – Model series: AVH

Vibratory Plate Compactors Reversible Vibratory Plate Compactors Ammann AVH 6030

Technical specs - AVH 6030 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
480 kg
Centrifugal force
60 kN
Working width
550 mm
Vibrating frequency
52 Hz
Power source
D
Model series
AVH
Engine manuf.
Hatz
Engine type
1D81S
Engine power
10.1 kW
Revolutions at max torque
3000 rpm
No. of cylinders
1

More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Download datasheets (PDF)

Ammann AVH 6030 overview

Amplitude

Relative compaction control ACEeco

As an alternative to the ACE-system, Ammann offers the system "ACE eco," which provides a corresponding relative compaction control display. Hereby, the operator is continuously informed about the achieved degree of compaction and the maximal feasible compaction. “ACE eco” is available as an option on models AVH 5030, 6030, and 100-20 (with electric starter only).
