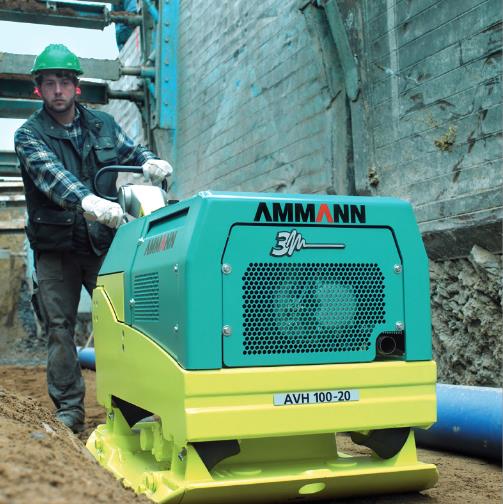

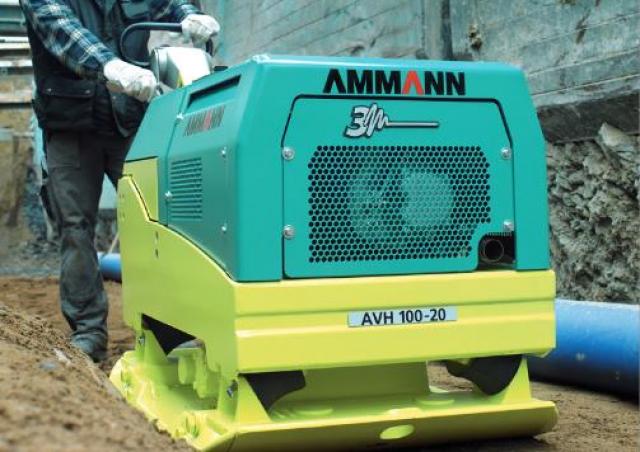

AVH 100-20 Ammann AVH 100-20 Specifications & Technical Data (2000—2011)
-
Model rating
- 10,00 / 10
Visit Ammann live at
Technical specs - AVH 100-20 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 678 kg
- Centrifugal force
- 100 kN
- Working width
- 650 mm
- Vibrating frequency
- 38 Hz
- Power source
- D
- Model series
- AVH
- Engine manuf.
- Hatz
- Engine type
- 1D90
- Engine power
- 11 kW
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Download datasheets (PDF)
Events
Visit Ammann live at
Buy & Rent
Compare Ammann AVH 100-20 with similar Reversible Vibratory Plate Compactors
Ammann AVH 100-20
- Weight:
- 678 kg
- Centrifugal force:
- 100 kN
- Working width:
- 650 mm
- Vibrating frequency:
- 38 Hz
Vibromax ATS 6002
- Weight:
- 798 kg
- Centrifugal force:
- 60 kN
- Working width:
- 680 mm
- Vibrating frequency:
- 30.5 Hz
