SL 10 CIFA SL 10 Specifications & Technical Data (2017—2026)

Structure

Counter-frame and supports completely calculated by "Finite Element Analysis" (FEM). Machine produced by means of special equipments in ongoing technology. High mixing capacity and maximum output thanks to the optimal positions of the spiral blades in the drum. The low center of gravity of the truck-mixer creates an ideal balanced loads distribution, to obtain better driving position and perfect stability particularly in narrow bends. The axle-frame and counter-frame arrangement provides good road adherence, superior manoeuvrability, as well as improved safety.

Product description

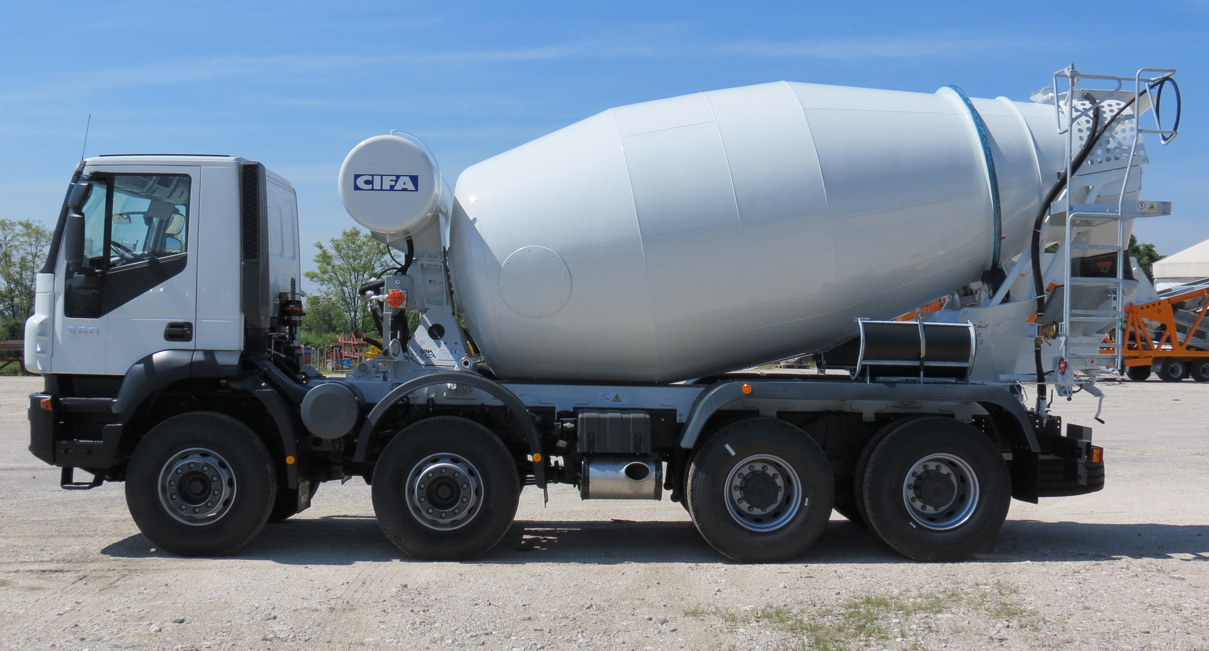

The "SL/SLA" Series has been conceived with a modern and compact design which goes towards increasing better performances, such as higher geometrical volume of the drum combined with a very limited total weight, simpler maintenance with greater safety.

For “SLA” versions

Separate engine Control panel complete of start key, temperature of engine oil, hour meter, pilot lights for alarms

Main Options

Hydraulic water pump and hydraulic lifting chuteAluminum pressurized water tank (200-300-400-500-600-800-950 l)Water tank (400-600-800-1200 l)Cone-shaped discharging chute with end hose diam. 200 mmAdditives tank, pressurized type (50 l)Centralized system for roller greasingHydraulic pipings emergency kitTwo additional plastic chutesAluminum sliding ladderDischarging chute driven by manual cylinder

Control system for “CSD 2.0” (Constant Speed Drive) versions

One control panel in the cab and one control panel with 3m cable placed in the mixer rear side to control the drum during the road transfer and operations
