HDA 10 CIFA HDA 10 Specifications & Technical Data (2017—2026)

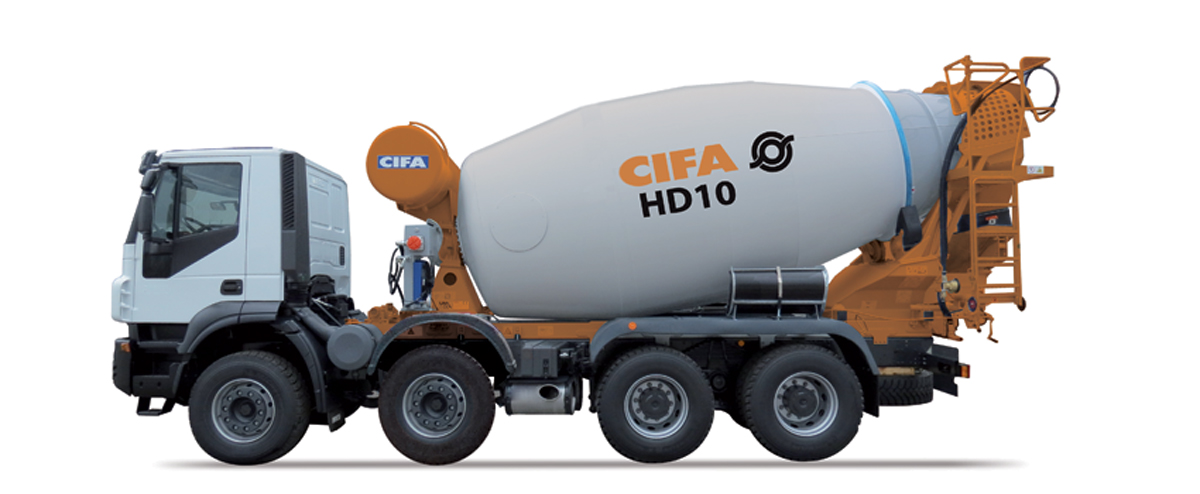

Name: CIFA HDA 10 Truck Mixers
Brand: CIFA

Nominal capacity: 10m³ – Drum drive: F – Weight: 5.534t – Geometric volume: 17.02m³ – Filling Level: 58% – Model series: HDA

HDA 10

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - HDA 10 CIFA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal capacity: 10 m³

Drum drive: F

Weight: 5.534 t

Geometric volume: 17.02 m³

Filling Level: 58 %

Model series: HDA

More technical details, like: max. total weight, required power are available in the full technical specs.

Mountable device with frame, without carrier F = vehicle motor, S = auxiliary motor

Special equipment

Water tank: No
auxiliary motor: No
with conveyor belt: No

Download datasheets (PDF)

CIFA HDA 10 overview

CIFA HDA 10 features overview

Structure

Structure and supports completely calculated by “Finite Element Analysis” (FEM). High mixing capacity and maximum output thanks to the optimal positions of the spiral blades in the drum. The low center of gravity of the truck-mixer creates an ideal balanced loads distribution, to obtain better driving position and perfect stability particularly in narrow bends. The axle-frame arrangement provides good road adherence, superior manoeuvrability, as well as improved safety.

Axle

Product description

The “HD” Heavy Duty Series has been conceived with a robust design to meet most demanding jobsite requirements in terms of reliability, high payload capacity and ease of use.
