Lectura specs Structural and Civil Engineering Equipment Rammers Gasoline and Diesel Rammers Rammers Ammann Gasoline and Diesel Rammers Ammann Ammann AVS 68 specifications

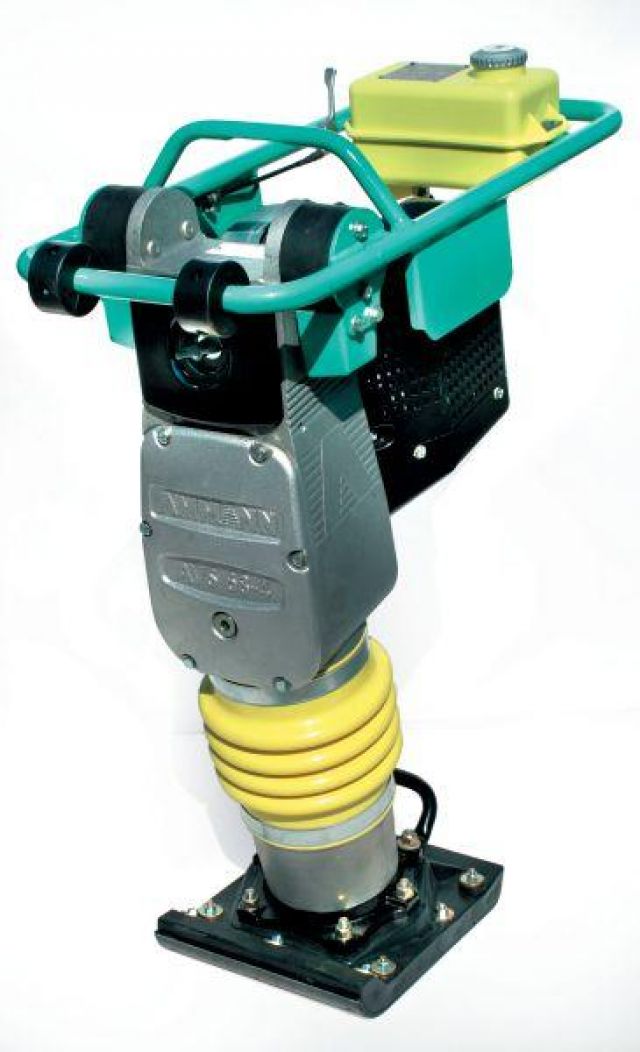

Ammann AVS 68 Specifications & Technical Data (2003-2010)

Rate this machine now!

Weight: 68kg – Tamper amplitude: 50mm – Tamper width: 280mm – Single stroke energy: 95J – max. No. of strokes: 6801/min – Power source: gasoline

Technical specs - AVS 68 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 68 kg
  • Tamper amplitude 50 mm
  • Tamper width 280 mm
  • Single stroke energy 95 J
  • max. No. of strokes 680 1/min
  • Power source gasoline
  • Model series AVS
  • Engine manuf. Honda
  • Engine type GX100
  • Engine power 2.2 kW
  • Revolutions at max torque 4300 rpm

More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

  • Tamper width variable
  • driving device

Carbon footprint calculator for Gasoline and Diesel Rammers

See the ERA equipment CO2 Calculator to estimate the carbon footprint per hour of use of the Ammann AVS 68 or alternative Gasoline and Diesel Rammers.

The carbon emission evaluation can be carried out based on different transportation scenarios or other factors.

or visit the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

service provided by ERA

Buy & Rent

Compare Ammann AVS 68 with similar Gasoline and Diesel Rammers

No image available

Ammann AVS 68

Weight: 68 kg

Tamper amplitude: 50 mm

Tamper width: 280 mm

Single stroke energy: 95 J

Press 1 image
Wacker Neuson BS 50-4 As 11"

Weight: 62 kg

Tamper amplitude: 55 mm

Tamper width: 280 mm

Single stroke energy: 75 J

Press 1 image
Wacker BS 65 Y

Weight: 73 kg

Tamper amplitude: 80 mm

Tamper width: 280 mm

Single stroke energy: 90 J

Press 1 image
BELLE (HK-Belle) RT 66

Weight: 69 kg

Tamper width: 280 mm

Press 1 image
Dynapac LT 52

Weight: 55 kg

Tamper amplitude: 40 mm

Tamper width: 250 mm
