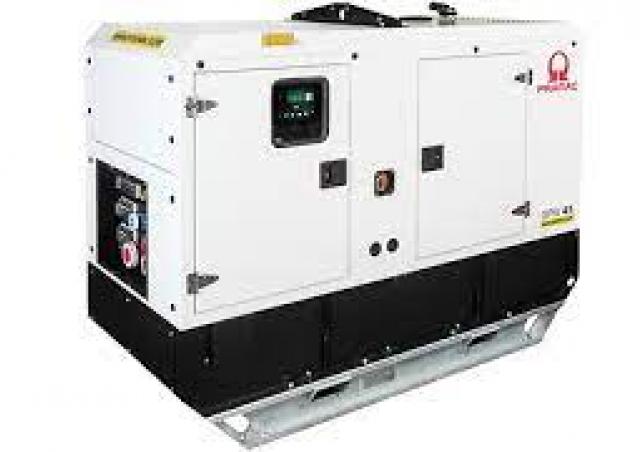

PRAMAC Lifter GPW 45y Basic Plus Specifications & Technical Data (2023-2024)

Rate this machine now!

Nominal output: 43KVA – Fuel consumption range (min - max): 7.43-10.55l/h – Nominal current: 69A – Nominal voltage: 400V – Weight: 883kg – Type of cooling: w

Technical specs - GPW 45y Basic Plus PRAMAC Lifter

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal output 43 KVA
  • Fuel consumption range (min - max) 7.43-10.55 l/h
  • Nominal current 69 A
  • Nominal voltage 400 V
  • Weight 883 kg
  • Type of cooling w
  • Transport length 2.2 m
  • Transport width 1.02 m
  • Transport height 1.51 m
  • Engine manuf. Yanmar
  • Engine type 4TNV98CT-IPGE
  • Engine power 43.7 kW
  • Displacement 3.319 l
  • Revolutions at max torque 1500 rpm
  • No. of cylinders 4
  • Emission level V

More technical details, like: carriage, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model

Special equipment

  • Electric starter
  • silenced
  • Earth leakage monitor
  • Automatic oil deficiency shutoff
  • Thermo magnetic switch
  • Ground fault circuit interrupter
