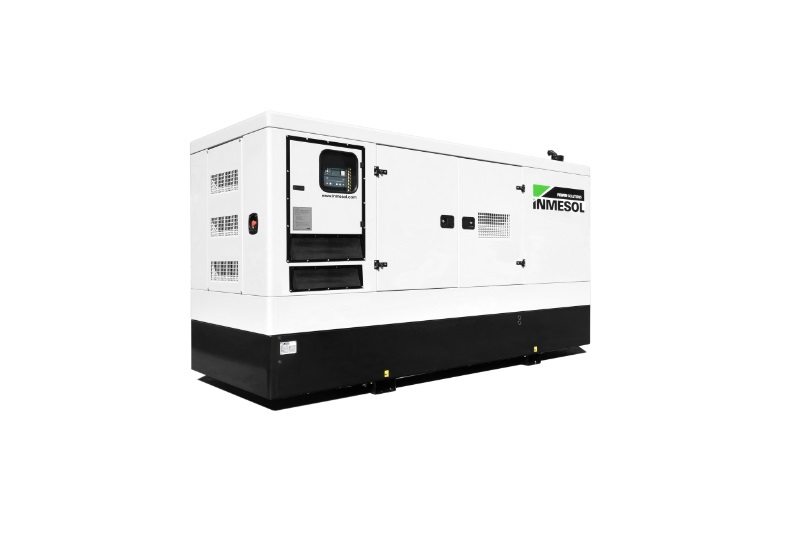

INMESOL IV-360 Specifications & Technical Data (2021-2024)

Nominal output: 356.9KVA – Nominal voltage: 400V – Weight: 4200kg – Type of cooling: l – Transport length: 4.2m – Transport width: 1.6m

Technical specs - IV-360 INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
356.9 KVA
Nominal voltage
400 V
Weight
4200 kg
Type of cooling
l
Transport length
4.2 m
Transport width
1.6 m
Transport height
2.245 m
Model series
IV
Engine manuf.
Volvo
Engine type
TAD843GE
Engine power
308 kW
Displacement
7.7 l
Revolutions at max torque
1500 rpm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm

More technical details, like: nominal current, carriage, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No
