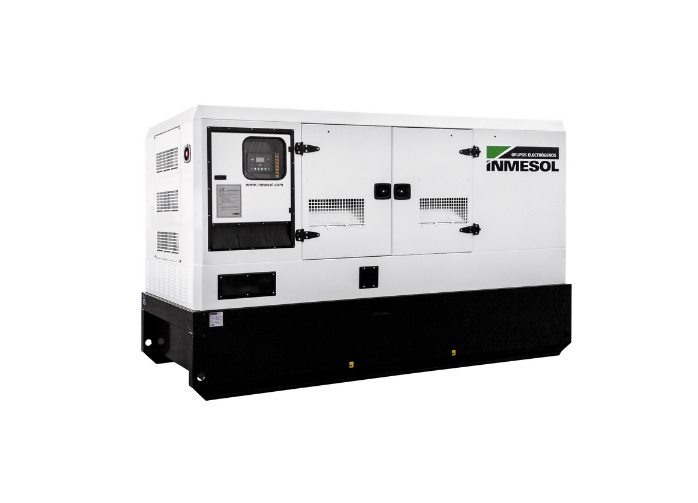

INMESOL IV-280 Specifications & Technical Data (2021-2024)

Rate this machine now!

Nominal output: 275KVA – Nominal voltage: 400V – Weight: 3018kg – Type of cooling: l – Transport length: 3.6m – Transport width: 1.35m

Technical specs - IV-280 INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal output 275 KVA
  • Nominal voltage 400 V
  • Weight 3018 kg
  • Type of cooling l
  • Transport length 3.6 m
  • Transport width 1.35 m
  • Transport height 2.04 m
  • Model series IV
  • Engine manuf. Volvo
  • Engine type TAD840GE
  • Engine power 242 kW
  • Displacement 7.7 l
  • No. of cylinders 6
  • Cylinder bore x stroke 110x135 mm

More technical details, like: fuel consumption range (min - max), nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

  • Electric starter
  • silenced
  • Earth leakage monitor
  • Automatic oil deficiency shutoff
  • Thermo magnetic switch
  • Ground fault circuit interrupter
