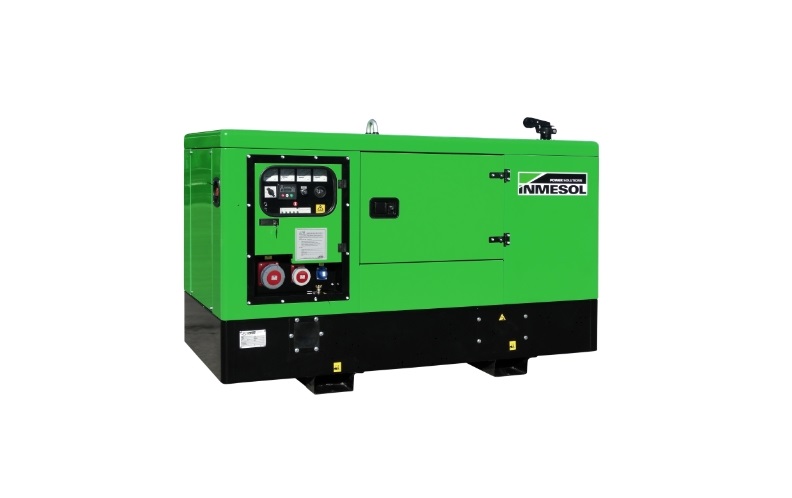

INMESOL IL-18
- Nominal output:
- 17.5 KVA
- Nominal voltage:
- 230 V
- Weight:
- 785 kg
- Type of cooling:
- l
INMESOL IL-18 Specifications & Technical Data (2019-2022)
.jpg)
Technical specs - IL-18 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 17.5 KVA
- Nominal voltage
- 230 V
- Weight
- 785 kg
- Type of cooling
- l
- Transport length
- 2 m
- Transport width
- 0.95 m
- Transport height
- 1.253 m
- Model series
- IL
- Engine manuf.
- Kohler
- Engine type
- KDW1903
- Engine power
- 19 kW
- Displacement
- 1.861 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 88x102 mm
More technical details, like: nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
