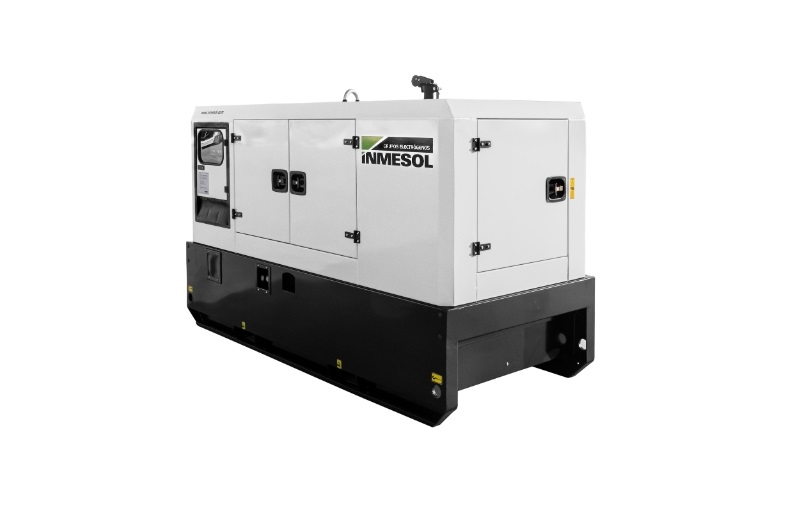

INMESOL IK-26
- Nominal output:
- 26.5 KVA
- Nominal voltage:
- 230 V
- Weight:
- 1010 kg
- Type of cooling:
- l
INMESOL IK-26 Specifications & Technical Data (2019-2024)
.jpg)
Technical specs - IK-26 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 26.5 KVA
- Nominal voltage
- 230 V
- Weight
- 1010 kg
- Type of cooling
- l
- Transport length
- 2.5 m
- Transport width
- 1.1 m
- Transport height
- 1.455 m
- Model series
- IK
- Engine manuf.
- Kohler
- Engine type
- KDI2504TM30
- Engine power
- 31 kW
- Displacement
- 2.482 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 88x102 mm
More technical details, like: nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
Download datasheets (PDF)
