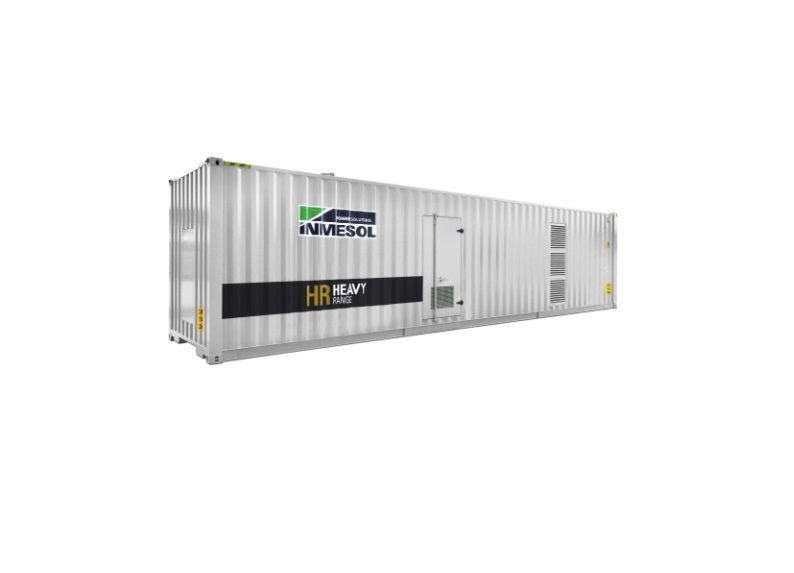

INMESOL CC-1570
- Nominal output:
- 1402 KVA
- Nominal voltage:
- 480 V
- Weight:
- 17500 kg
- Type of cooling:
- w
CC-1570 INMESOL CC-1570 Specifications & Technical Data (2024—2026)
Technical specs - CC-1570 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 1402 KVA
- Nominal voltage
- 480 V
- Weight
- 17500 kg
- Type of cooling
- w
- Transport length
- 12.192 m
- Transport width
- 2.438 m
- Transport height
- 3.01 m
- Model series
- CC
- Engine manuf.
- Cummins
- Engine type
- KTA50G3
- Engine power
- 1182 kW
- Displacement
- 50.3 l
- Revolutions at max torque
- 1800 rpm
- No. of cylinders
- 16
- Cylinder bore x stroke
- 159x159 mm
More technical details, like: nominal current, carriage, dimension lxwxh, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
Download datasheets (PDF)
