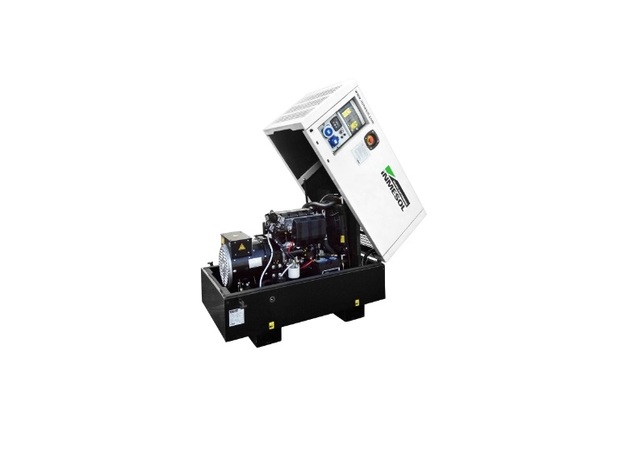

INMESOL BK-10 Specifications & Technical Data (2021-2022)

Nominal output: 9.6KVA – Nominal voltage: 230V – Weight: 530kg – Type of cooling: l – Transport length: 1.5m – Transport width: 0.8m

Technical specs - BK-10 INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
9.6 KVA
Nominal voltage
230 V
Weight
530 kg
Type of cooling
l
Transport length
1.5 m
Transport width
0.8 m
Transport height
1.03 m
Model series
BK
Engine manuf.
Kohler
Engine type
KDW1404
Engine power
11.5 kW
Displacement
1.4 l
No. of cylinders
4
Cylinder bore x stroke
75x77.6 mm

More technical details, like: nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No

Download datasheets (PDF)
