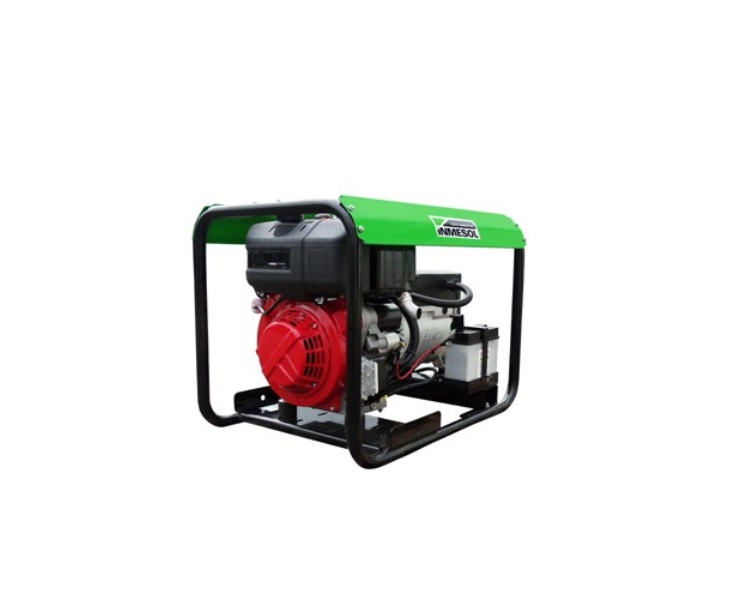

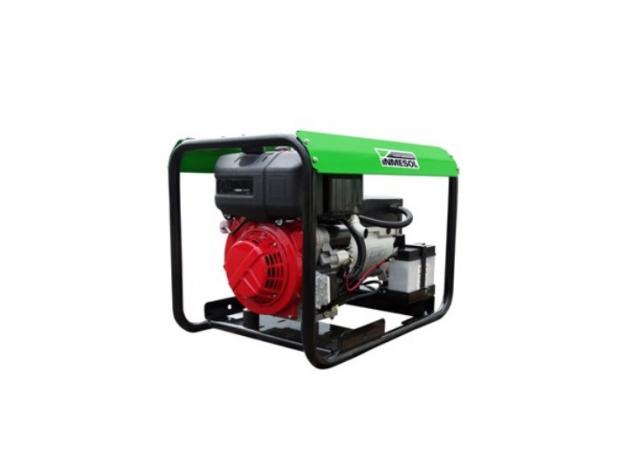

INMESOL AKD-500-E
- Nominal output:
- 5 KVA
- Nominal current:
- 16 A
- Nominal voltage:
- 230 V
- Weight:
- 115 kg
INMESOL AKD-500-E Specifications & Technical Data (2018-2024)
Technical specs - AKD-500-E INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 5 KVA
- Nominal current
- 16 A
- Nominal voltage
- 230 V
- Weight
- 115 kg
- Type of cooling
- l
- Transport length
- 0.81 m
- Transport width
- 0.55 m
- Transport height
- 0.6 m
- Model series
- AKD
- Engine manuf.
- Kohler
- Engine type
- KD15 440
- Engine power
- 6.7 kW
- Displacement
- 0.441 l
- No. of cylinders
- 1
- Cylinder bore x stroke
- 86x76 mm
More technical details, like: carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
