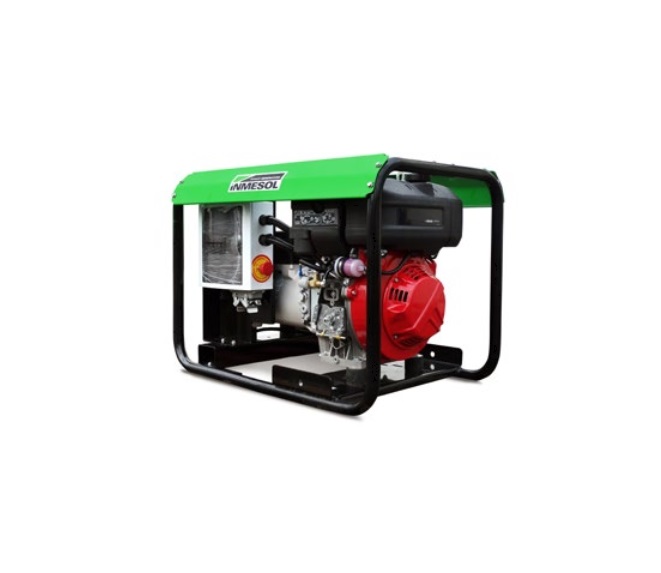

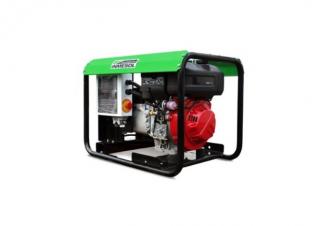

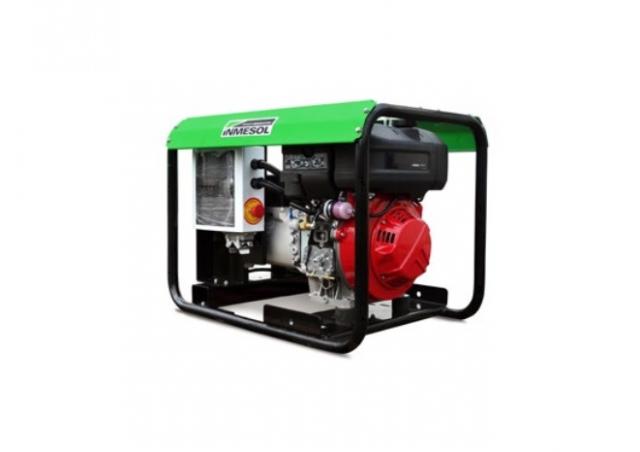

INMESOL AKD-500-CA Specifications & Technical Data (2018-2021)

Nominal output: 5.5KVA – Nominal current: 16A – Nominal voltage: 230V – Weight: 115kg – Type of cooling: l – Transport length: 0.81m

Power Generators Diesel Power Generators INMESOL AKD-500-CA

Technical specs - AKD-500-CA INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
5.5 KVA
Nominal current
16 A
Nominal voltage
230 V
Weight
115 kg
Type of cooling
l
Transport length
0.81 m
Transport width
0.55 m
Transport height
0.6 m
Model series
AKD
Engine manuf.
Kohler
Engine type
KD15 440
Engine power
6.7 kW
Displacement
0.441 l
No. of cylinders
1
Cylinder bore x stroke
86x76 mm

More technical details, like: carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No
