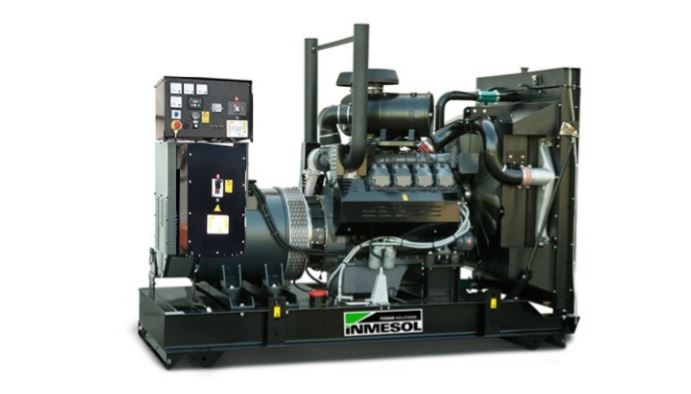

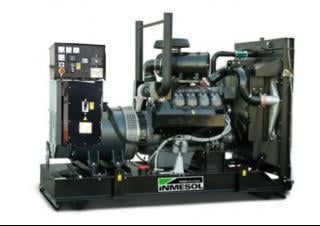

AD-415 INMESOL AD-415 Specifications & Technical Data (2018—2024)
Technical specs - AD-415 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 412.4 KVA
- Nominal voltage
- 400 V
- Weight
- 2740 kg
- Type of cooling
- l
- Transport length
- 2.825 m
- Transport width
- 1.515 m
- Transport height
- 2.25 m
- Model series
- AD
- Engine manuf.
- Deutz
- Engine type
- BF6M1015CP
- Engine power
- 356.3 kW
- Displacement
- 11.9 l
- Revolutions at max torque
- 1500 rpm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 132x145 mm
More technical details, like: nominal current, carriage, dimension lxwxh, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
