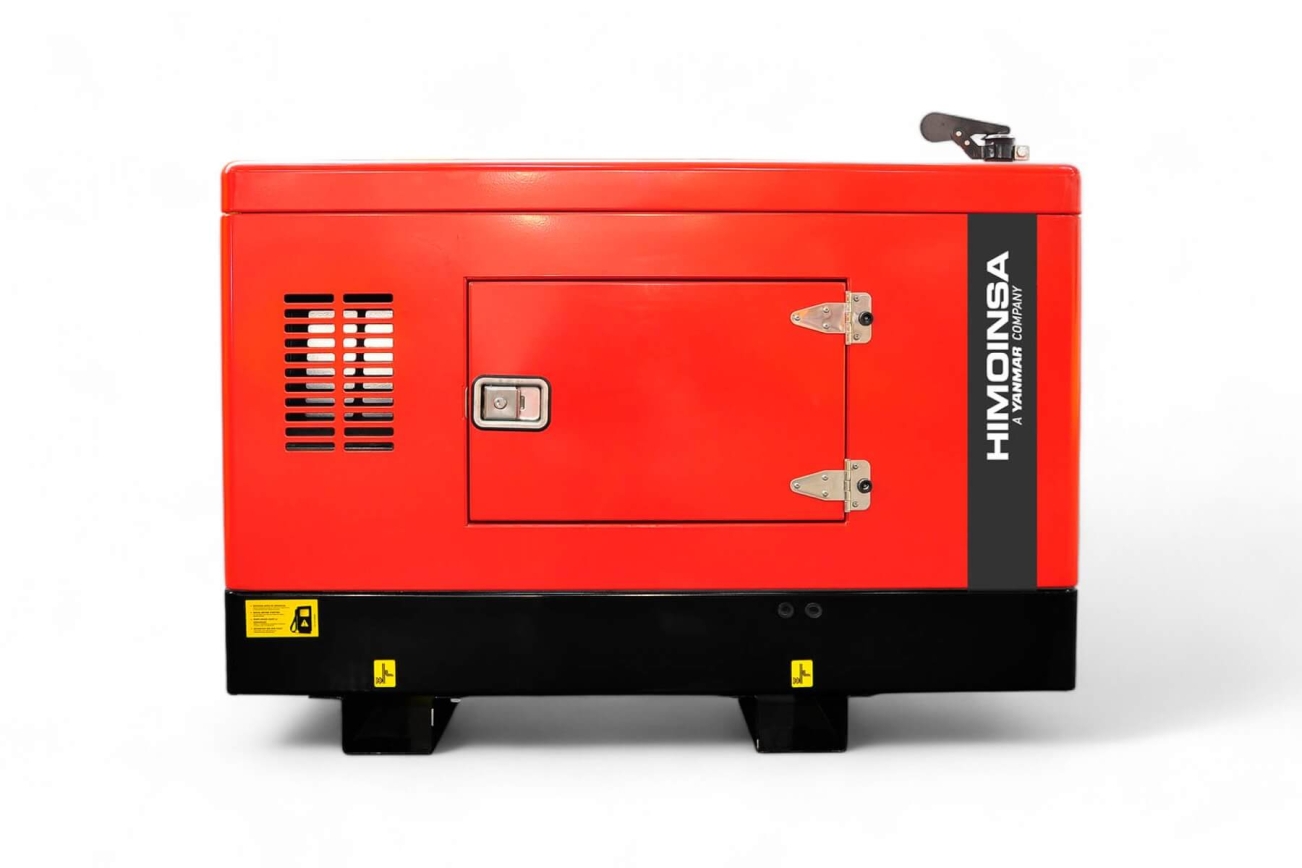

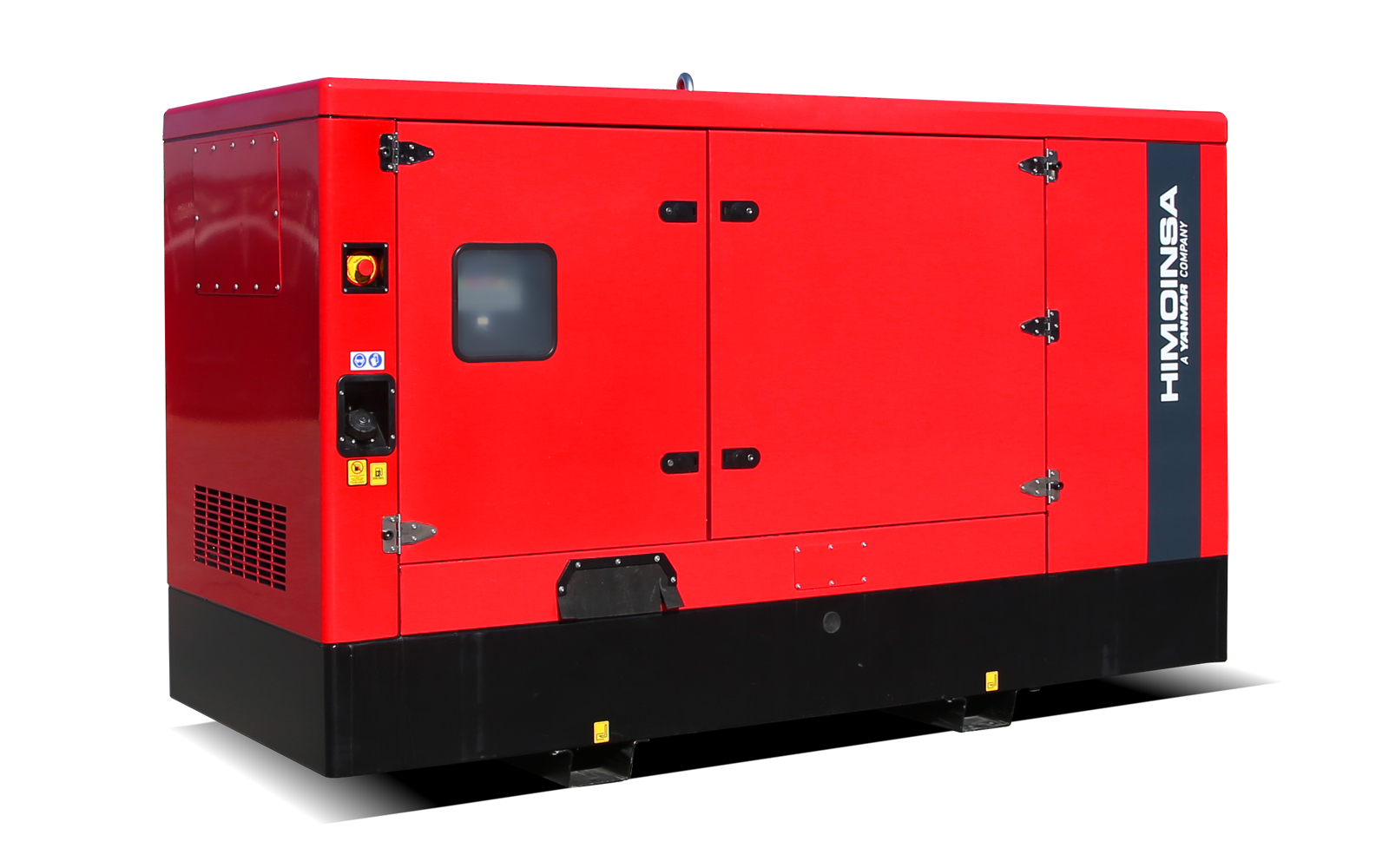

HYW-40 M5 HIMOINSA HYW-40 M5 Specifications & Technical Data (2025—2026)

Nominal output: 34KVA – Nominal voltage: 230V – Weight: 1068kg – Type of cooling: w – Transport length: 2.1m – Transport width: 0.975m

Power Generators Diesel Power Generators HIMOINSA HYW-40 M5
Power Generators Diesel Power Generators HIMOINSA HYW-40 M5
Power Generators Diesel Power Generators HIMOINSA HYW-40 M5
Power Generators Diesel Power Generators HIMOINSA HYW-40 M5

Technical specs - HYW-40 M5 HIMOINSA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
34 KVA
Nominal voltage
230 V
Weight
1068 kg
Type of cooling
w
Transport length
2.1 m
Transport width
0.975 m
Transport height
1.35 m
Engine manuf.
Yanmar
Engine type
4TNV98TGGEH
Engine power
37.7 kW
Displacement
3.319 l
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
Stage II

More technical details, like: nominal current, carriage, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model

Special equipment

Electric starter
No
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No
