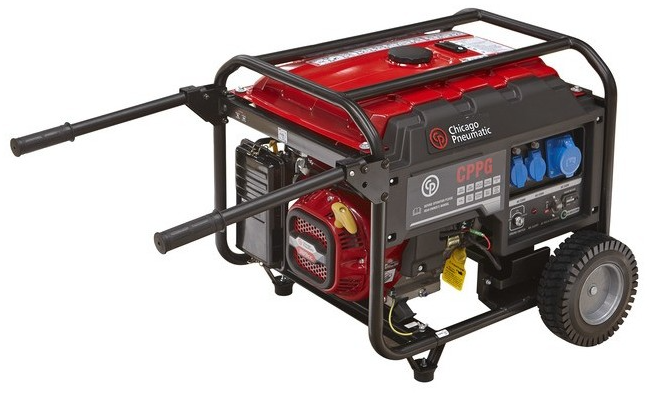

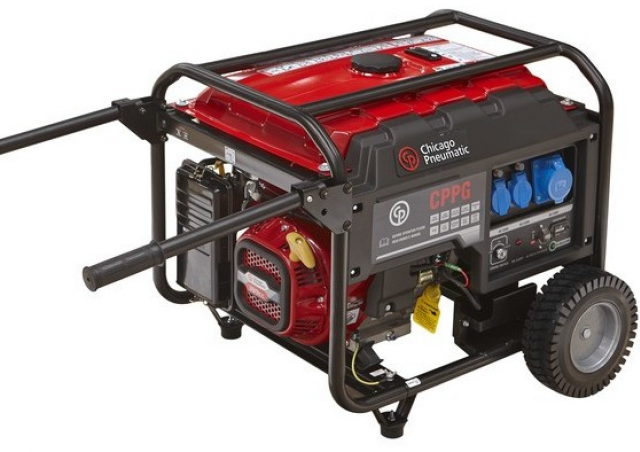

CPPG 9AS Chicago Pneumatic CPPG 9AS Specifications & Technical Data (2017—2026)

Nominal output: 7.6KVA – Nominal voltage: 230V – Weight: 204kg – Transport length: 0.99m – Transport width: 0.602m – Transport height: 0.826m

Technical specs - CPPG 9AS Chicago Pneumatic

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
7.6 KVA
Nominal voltage
230 V
Weight
204 kg
Transport length
0.99 m
Transport width
0.602 m
Transport height
0.826 m
Model series
CPPG
Engine manuf.
Lombardini
Engine type
25LD330
Engine power
10 kW
Displacement
0.654 l
Revolutions at max torque
3000 rpm

More technical details, like: nominal current, type of cooling, carriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No

Download datasheets (PDF)
