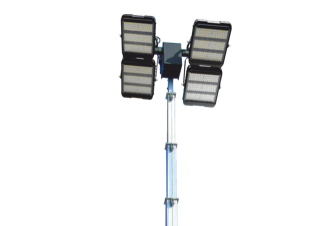

Generac Mobile V 20 P2 Specifications & Technical Data (2022-2025)

Light coverage: 4500m² – Mast height: 8.5m – Mast type: Hydraulic – Operating weight: 980kg – Power source: Diesel – Total width: 1850mm

Technical specs - V 20 P2 Generac Mobile

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Light coverage
4500 m²
Mast height
8.5 m
Mast type
Hydraulic
Operating weight
980 kg
Power source
Diesel
Total width
1850 mm
Total length
2200 mm
Total height
2440 mm
Frequency
60 Hz
Lamps
LED
Voltage
240 V
Operating time
145
Model series
DIESEL
Engine manuf.
Perkins
Engine type
402D-05
No. of cylinders
2

More technical details, like: engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, weight, emission level are available in the full technical specs.
