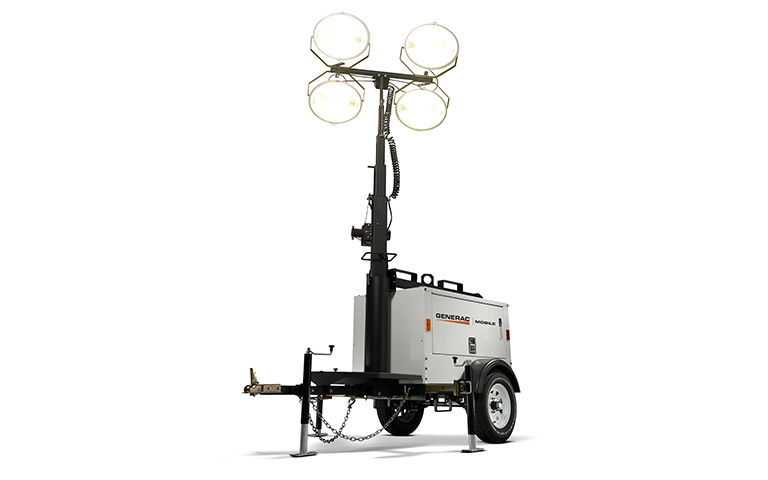

    Generac Mobile MLT4200 IVF4 Specifications & Technical Data (2022-2022)

    Rate this machine now!

    Light coverage: 2964m² – Mast height: 7.6m – Operating weight: 1176kg – Total width: 1730mm – Total length: 2920mm – Total height: 2710mm

    Technical specs - MLT4200 IVF4 Generac Mobile

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Light coverage 2964 m²
    • Mast height 7.6 m
    • Operating weight 1176 kg
    • Total width 1730 mm
    • Total length 2920 mm
    • Total height 2710 mm
    • Frequency 60 Hz
    • Lamps MetalHalide
    • Voltage 240 V
    • Power source Diesel
    • Operating time 48
    • Engine manuf. Isuzu
    • Engine type 4LE2TAGV-03
    • Engine power 30 kW
    • Displacement 2.2 l
    • No. of cylinders 4
    • Emission level Tier 4f

    More technical details, like: mast type, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight are available in the full technical specs.
