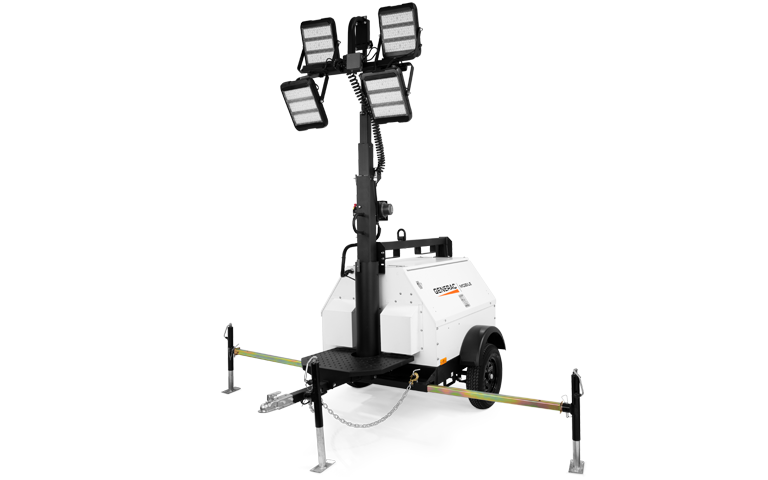

MLT4060KV LED Generac Mobile MLT4060KV LED Specifications & Technical Data (2022—2026)

Light coverage: 2605m² – Mast height: 7.52m – Operating weight: 1126kg – Power source: Diesel – Total width: 1780mm – Total length: 2900mm

Technical specs - MLT4060KV LED Generac Mobile

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Light coverage
2605 m²
Mast height
7.52 m
Operating weight
1126 kg
Power source
Diesel
Total width
1780 mm
Total length
2900 mm
Total height
2600 mm
Frequency
60 Hz
Lamps
LED
Voltage
240 V
Operating time
187
Engine manuf.
Kubota
Engine type
D1005
Engine power
9.8 kW
Displacement
1 l
No. of cylinders
3
Emission level
Tier 4f

More technical details, like: mast type, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight are available in the full technical specs.
