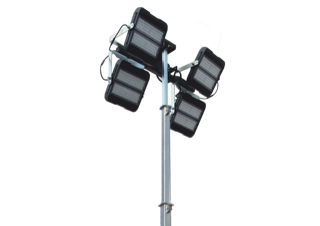

Generac Mobile Linktower T4 LED Specifications & Technical Data (2022-2025)

Light coverage: 2800m² – Mast height: 6.7m – Mast type: Manual – Operating weight: 248kg – Power source: Electric – Total width: 1460mm

Technical specs - Linktower T4 LED Generac Mobile

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Light coverage
2800 m²
Mast height
6.7 m
Mast type
Manual
Operating weight
248 kg
Power source
Electric
Total width
1460 mm
Total length
1870 mm
Total height
2110 mm
Frequency
60 Hz
Lamps
LED
Voltage
240 V
Model series
ELECTRIC
Engine manuf.
N/A
Engine type
N/A

More technical details, like: operating time, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Download datasheets (PDF)

Buy & Rent

Compare Generac Mobile Linktower T4 LED with similar Light Towers

Generac Mobile Linktower T4 LED

Generac Mobile Linktower T4 LED

Light coverage:
2800 m²
Mast height:
6.7 m
Mast type:
Manual
Operating weight:
248 kg
Aurora Alpha 4x160W

Aurora Alpha 4x160W

Light coverage:
3300 m²
Mast height:
8.5 m
Mast type:
Manual
Operating weight:
620 kg
