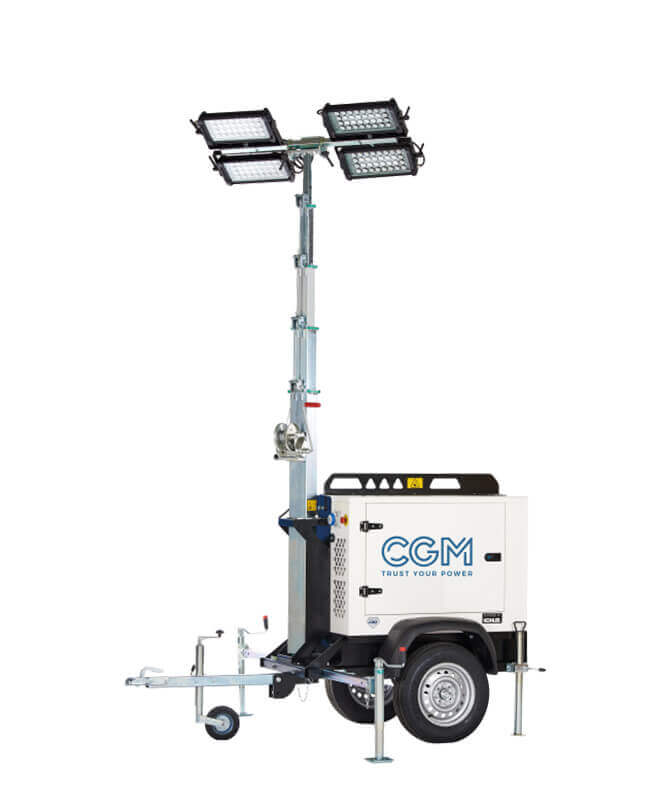

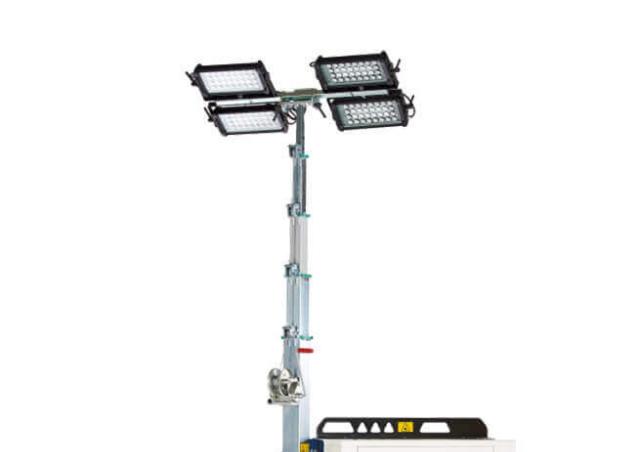

Technical specs - FXS4-320L CGM
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Light coverage 4500 m²
- Mast height 7.5 m
- Mast type Manual
- Operating weight 625 kg
- Power source Diesel
- Total width 1200 mm
- Total length 1550 mm
- Total height 2700 mm
- Frequency 50 Hz
- Lamps LED
- Voltage 230 V
- Operating time 84
- Model series FXS
- Engine manuf. Kohler
- Engine type KD350
- Engine power 4.3 kW
- Displacement 0.35 l
- No. of cylinders 1
More technical details, like: average fuel consumption, fuel consumption range (min - max), dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight, emission level are available in the full technical specs.
