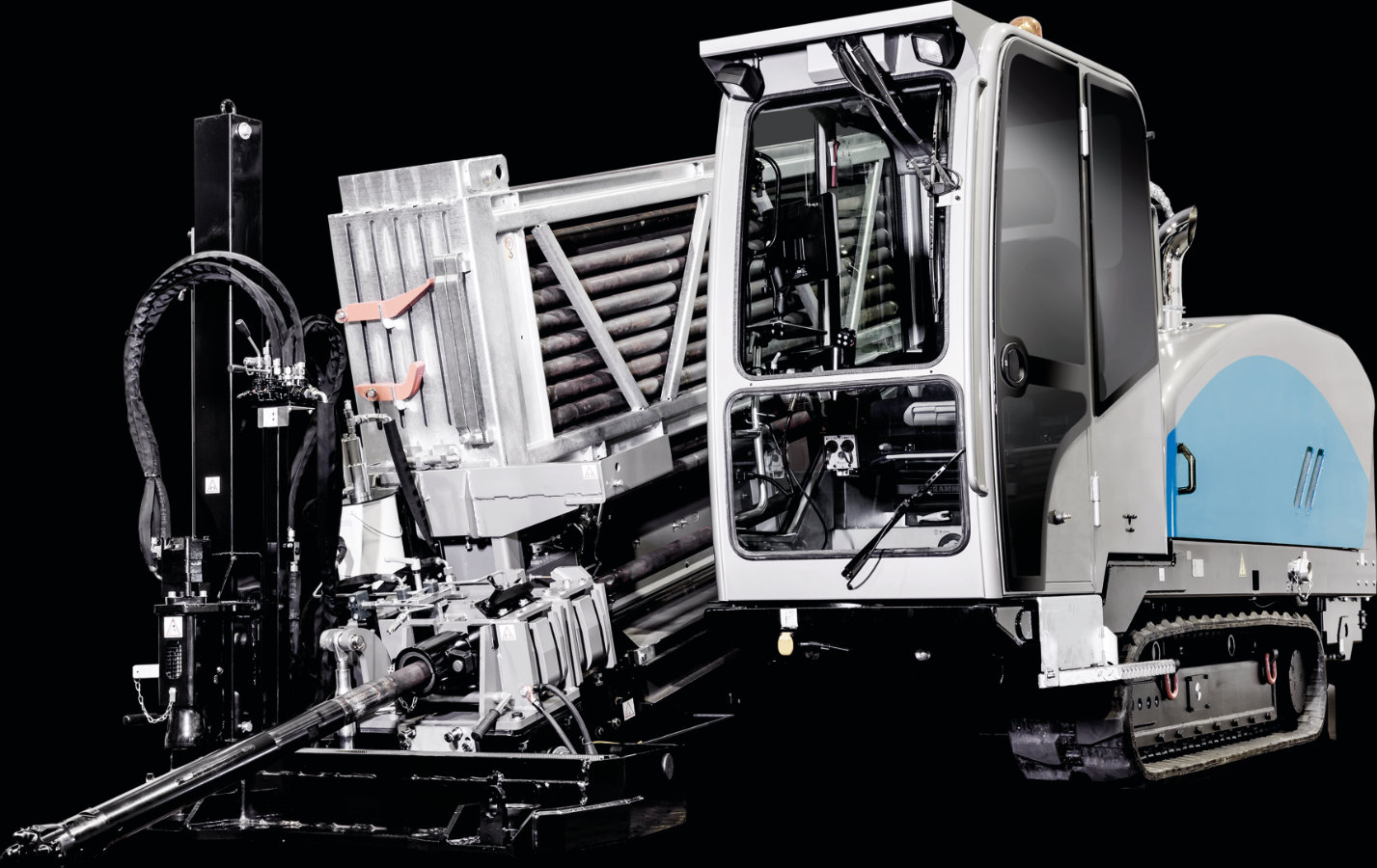

Grundodrill 15 XPT TRACTO-Technik Grundodrill 15 XPT Specifications & Technical Data (2016—2020)

Max. torque: 6500Nm – Boom Lifting Torque: 160kN – Pressure: 160kN – Max. opening ø: 500mm – max. drilling length: 400m – Drive power: 123kW

Technical specs - Grundodrill 15 XPT TRACTO-Technik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Max. torque
6500 Nm
Boom Lifting Torque
160 kN
Pressure
160 kN
Max. opening ø
500 mm
max. drilling length
400 m
Drive power
123 kW
Weight
10780 kg
Cutter head ø
115 mm
Model series
Grundodrill

Special equipment

Two-gear mount
No
Electric shock reporting system
Yes
hydr. linkage changing system
Yes
