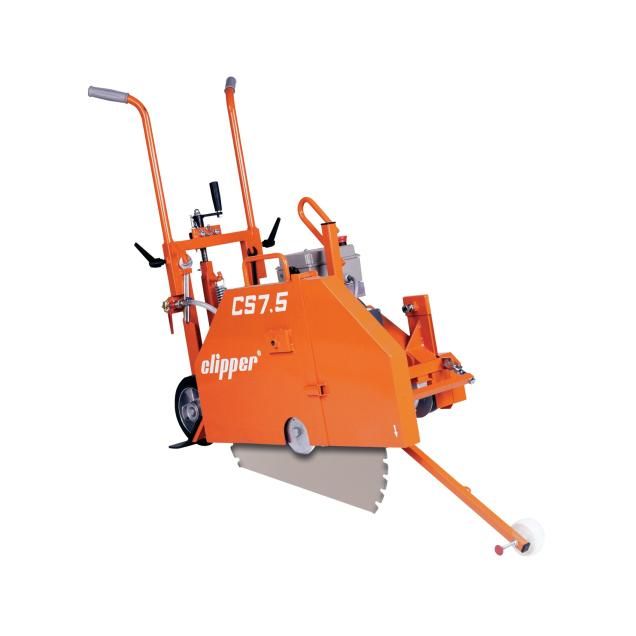

CS 7.5 E 800 Norton-Clipper CS 7.5 E 800 Specifications & Technical Data (2007—2026)

Weight: 118kg – Cutting depth: 320mm – Disc Ø: 800mm – Saw blade intake: 25.4mm – Transport length: 1.27m – Transport width: 0.58m

Floor Saws Norton-Clipper CS 7.5 E 800

Technical specs - CS 7.5 E 800 Norton-Clipper

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
118 kg
Cutting depth
320 mm
Disc Ø
800 mm
Saw blade intake
25.4 mm
Transport length
1.27 m
Transport width
0.58 m
Transport height
1 m
Cutting shaft speed
1460 min-1
Power source
Electric
Model series
CS
Engine manuf.
Leroy
Engine type
LS 132 S
Engine power
7.5 kW
Dimension lxwxh
351x227x285 mm
Revolutions at max torque
2915 rpm
Max. torque
24.6 Nm
Emission level
IE3

More technical details, like: floor type, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
