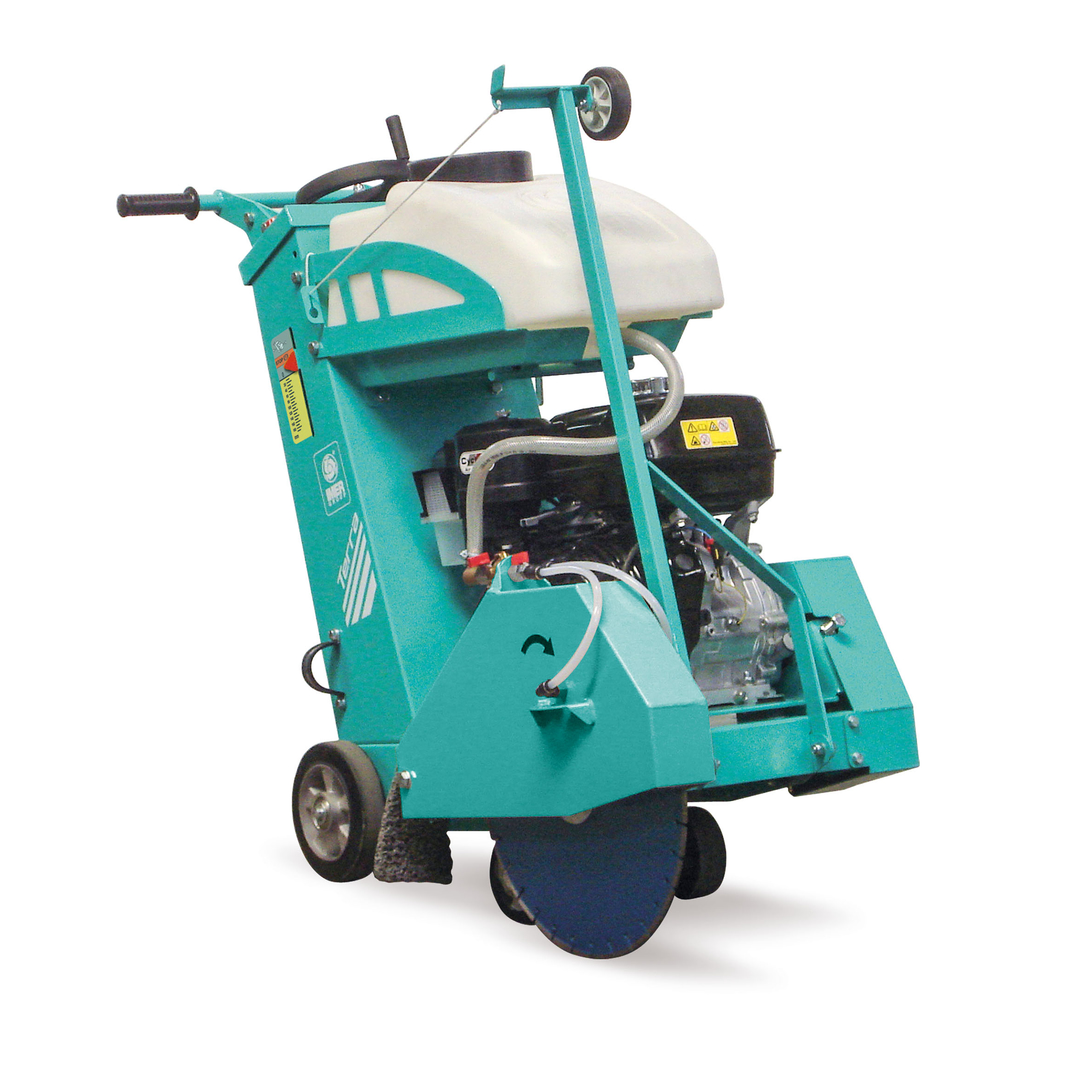

Imer Terra 500
- Weight:
- 140 kg
- Cutting depth:
- 190 mm
- Disc Ø:
- 500 mm
- Transport length:
- 1.205 m
Terra 500 Imer Terra 500 Specifications & Technical Data (2025—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - Terra 500 Imer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 140 kg
- Cutting depth
- 190 mm
- Disc Ø
- 500 mm
- Transport length
- 1.205 m
- Transport width
- 0.67 m
- Transport height
- 1.224 m
- Power source
- Benzin
- Model series
- Terra
- Engine manuf.
- Kohler
- Engine type
- CH440
- Engine power
- 10.5 kW
- Displacement
- 0.429 l
- Revolutions at max torque
- 3850 rpm
- No. of cylinders
- 1
- Emission level
- V
More technical details, like: saw blade intake, cutting shaft speed, floor type, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
