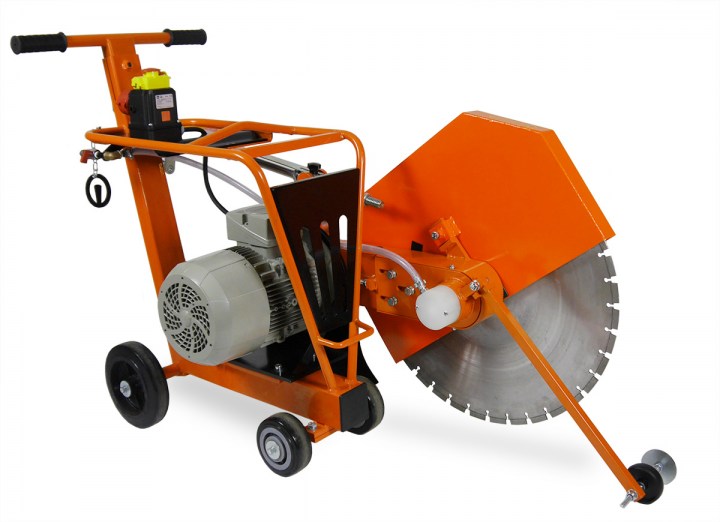

Gölz FS 23 E Specifications & Technical Data (2017-2023)

Rate this machine now!

Weight: 108kg – Cutting depth: 230mm – Disc Ø: 600mm – Saw blade intake: 25.4mm – Transport length: 1.07m – Transport width: 0.53m

Technical specs - FS 23 E Gölz


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 108 kg
  • Cutting depth 230 mm
  • Disc Ø 600 mm
  • Saw blade intake 25.4 mm
  • Transport length 1.07 m
  • Transport width 0.53 m
  • Transport height 0.89 m
  • Cutting shaft speed 1360 min-1
  • Power source Electric
  • Model series E
  • Engine manuf. k.A.
  • Engine type E 400 V
  • Engine power 4 kW

More technical details, like: average fuel consumption, fuel consumption range (min - max), floor type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
