CH895 Sandvik CH895 Specifications & Technical Data (2017—2019)

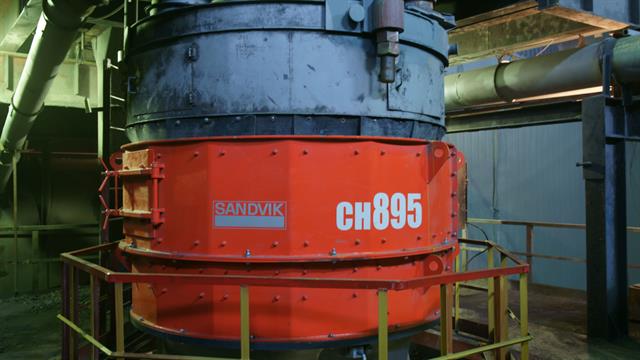

Sandvik CH890 and CH895 Cone Crushers

Sandvik CH890 and Sandvik CH895 are technologically advanced, high-capacity cone crushers designed for your mine’s specific requirements. Each crusher has a hydraulically supported main shaft which is supported at both ends. With a robust design, adjustable eccentric throw, a constant intake opening, high performance can be achieved by proper selection of a Sandvik OEM crushing chamber. Sandvik CH890 is dedicated for high capacity secondary crushing thanks to its 750 kW motor delivering higher power and more crushing force at maximum throw. The aggressive crushing action processes more ore, yet maintains product size, giving customers more throughput. With the Sandvik CH895, the increased crushing force facilitates higher size reduction, resulting in a finer product size and less circulating load in closed circuits. It’s particularly beneficial for tertiary and pebble crushing applications. Each crusher is supplied as a complete package with all functions working in harmony and with a motor designed for exacting requirements. The Automatic Setting Regulation - ASRi™ control system enables real-time performance management, most tangibly equaling maximized crusher performance and productivity.

Tank Instrumentation Monitoring System (TIMS)

The system monitors the instruments and safety devices in the tank unit for correct operation via the plant’s control system of the various ancillary systems.

Offline Filter Unit for Main Lubrication (Option)

Removes particles, degrading particles, and water from the main lubrication system in a continuous slow offline filtration process.
