TS2430 Tesab Screener Specs, Dimensions & Technical Data - 2017 - 2026

Weight: 27.2t – Transport length: 16.52m – Transport width: 2.9m – Transport height: 3.4m – Plant type: RM – Screen width: 1.52m…

Weight: 27.2t – Transport length: 16.52m – Transport width: 2.9m – Transport height: 3.4m – Plant type: RM – Screen width: 1.52m

Check out detailed dimensions, specifications, information and technical data for Tesab TS2430 screener manufactured between 2017 - 2026. Get more in-depth insight with Tesab TS2430 screening machine. See information, like: Weight: 27.2t – Transport length: 16.52m – Transport width: 2.9m – Transport height: 3.4m – Plant type: RM – Screen width: 1.52m and more.

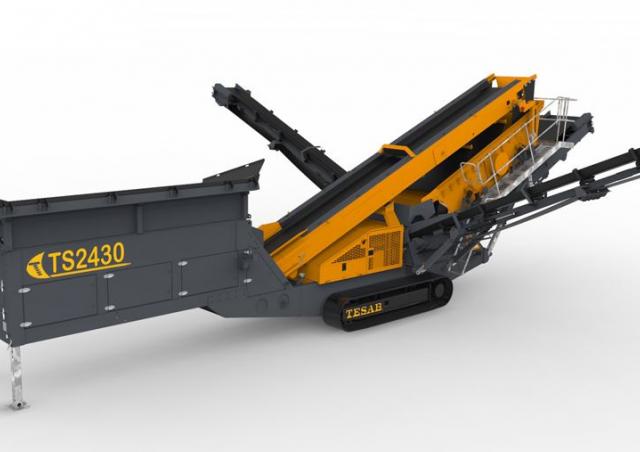

Mobile Screening Plants Tesab TS2430

Technical specs - TS2430 Tesab

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.2 t
Transport length
16.52 m
Transport width
2.9 m
Transport height
3.4 m
Plant type
RM
Screen width
1.52 m
Screen length
4.2 m
Drive power
75 kW
Maximum Number of screens
2
Main conveyor width
1520 mm
Side conveyor width
1520 mm
Model series
TS

More technical details, like: type of screen, drive, hopper capacity are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)
