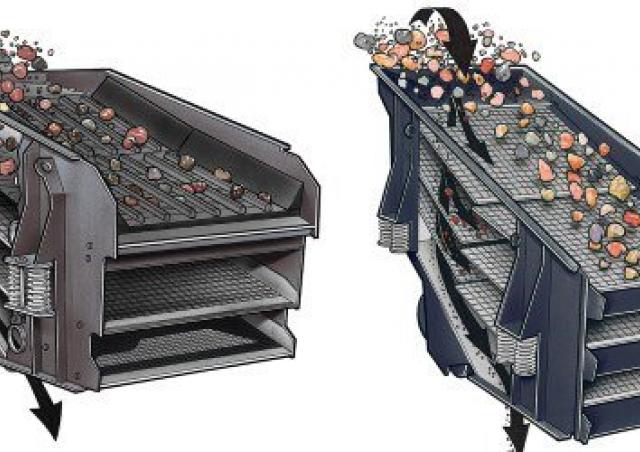

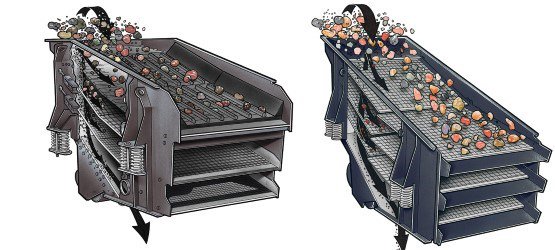

Free-Fall Screens

The Free-Fall screens usually require additional screening decks compared to the conventional screens, in order to perform at its impressive capacities. If not all screening decks are being used, a special protection cloth can be supplied in order to cover and protect the open support frames from excessive wear.

SF Free-Fall Screens

Bolted screen body with rubber lined feed box and wear protected side plates. Two electrical motors, self-synchronizing and unbalanced (as standard 6-pole 1,000 rpm, 50 Hz/400 V, protection class IP 65). Suspension with steel coil springs and spring supports. Length tensioned wire mesh (any hole size) for all decks. Rubber covered discharge lips (SF1843 and SF1844). Transport plane under the bottom deck collecting fine material towards discharge end. Back wall made of rubber for dust retention. Friction checks integrated into spring base mounts (SF1843 and SF1844). Surface treatment according to Sandvik S&F standard.

Scope of Supply – SF Free-Fall Screen Unit/Screen Station

Item no. 1-8 corresponds to the modules required for a complete screen station and item no. 1-5 to a screen unit. Some modules offer more than one alternative, of which only one of them can be selected. The screen units and stations according to the table below are available for the screen models SF1443 and SF1843.

WS6000 and WS6000H Panels

Our Sandvik WS6000 and WS6000H steel-reinforced, self-supporting panels are built to take a heavy beating in your primary scalping applications. These panels are made of hardwearing rubber that has been designed to withstand your heavy-duty needs, giving you a long life, long servicing intervals and reduced maintenance requirements. The WS6000 and WS6000H screen panels are both designed for medium-coarse to coarse screening in the quarrying and mining industries and can be made to measure in a number of different lengths, widths, thicknesses and hole sizes. This is a strong and reliable self-supporting screening element designed for coarse screening with separations from 45 mm and up with a max feed lump size up to 300 mm. The WS6000H, however, comes with skid bars that keep larger 300-400mm boulders off the panel surface, guiding fine material toward the holes and preventing excessive wear.
