SR2131 Sandvik Screener Specs, Dimensions & Technical Data - 2017 - 2022

Name: Sandvik SR2131 Mobile Screening Plants
Brand: Sandvik

Weight: 15.1t – Plant type: KU – Screen width: 2.1m – Screen length: 2m – Drive power: 2x22kW – Maximum Number of screens: 1…

Weight: 15.1t – Plant type: KU – Screen width: 2.1m – Screen length: 2m – Drive power: 2x22kW – Maximum Number of screens: 1

Check out detailed dimensions, specifications, information and technical data for Sandvik SR2131 screener manufactured between 2017 - 2022. Get more in-depth insight with Sandvik SR2131 screening machine. See information, like: Weight: 15.1t – Plant type: KU – Screen width: 2.1m – Screen length: 2m – Drive power: 2x22kW – Maximum Number of screens: 1 and more.

SR2131

Years of manufacture: 2017—2022

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - SR2131 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.1 t

Plant type: KU

Screen width: 2.1 m

Screen length: 2 m

Drive power: 2x22 kW

Maximum Number of screens: 1

Model series: SR

More technical details, like: transport length, transport width, transport height, type of screen, drive, hopper capacity, main conveyor width, side conveyor width are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Sandvik SR2131 overview

Screening Deck

Features

No vibration, thus lighter supporting structure requirements. Screens wet and sticky materials without blinding, giving increased screening efficiency with difficult materials. Easy to encapsulate to minimize dust and noise emissions. Reliable efficiency and efficient screening action mean that minimized screening area and optimized screen size can be used.

Material

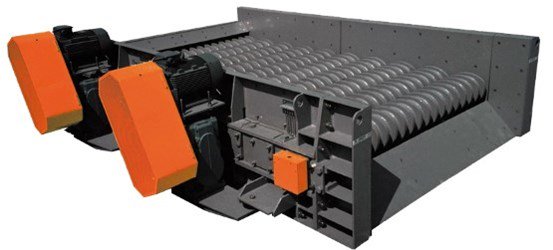

Roller screen crusher

This equipment is specially designed for coal-fired power plants, in order to remove impurities of commercial coal as well as to crush down existing coal lumps to acceptable sizes. The Roller Screen Crusher includes: dust encapsulation, pre-screen, two crusher drums and after-screen. A pre-crusher might be necessary to put on top of the pre-screener if many lumps are present (e.g. frozen coal). The crusher drums have a releasing mechanism to enable wood pieces, stones and other impurities to be rejected. The sensitivity of the release mechanism is adjustable.
