QE241 Sandvik Screener Specs, Dimensions & Technical Data - 2016 - 2026

Weight: 17.5t – Transport length: 9.98m – Transport width: 2.5m – Transport height: 3.1m – Plant type: RM – Screen width: 1.24m…

Weight: 17.5t – Transport length: 9.98m – Transport width: 2.5m – Transport height: 3.1m – Plant type: RM – Screen width: 1.24m

Check out detailed dimensions, specifications, information and technical data for Sandvik QE241 screener manufactured between 2016 - 2026. Get more in-depth insight with Sandvik QE241 screening machine. See information, like: Weight: 17.5t – Transport length: 9.98m – Transport width: 2.5m – Transport height: 3.1m – Plant type: RM – Screen width: 1.24m and more.

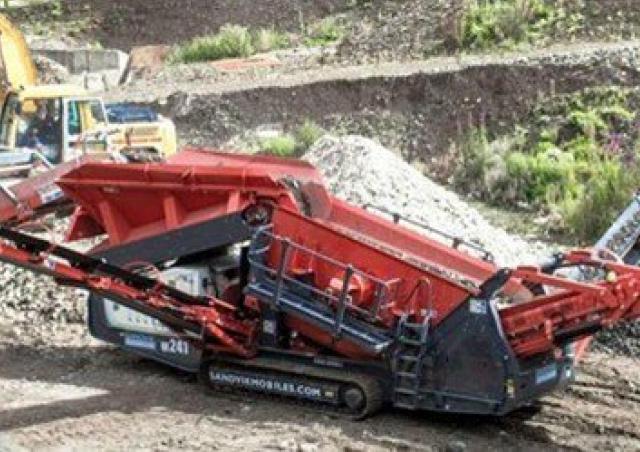

Mobile Screening Plants Sandvik QE241

Visit Sandvik live at

Technical specs - QE241 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.5 t
Transport length
9.98 m
Transport width
2.5 m
Transport height
3.1 m
Plant type
RM
Screen width
1.24 m
Screen length
3.5 m
Drive
D/Hy
Drive power
74.5 kW
Maximum Number of screens
2
Hopper capacity
4.2 m³
Main conveyor width
1200 mm
Side conveyor width
650 mm
Model series
QE

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Sandvik QE241 overview

Screening Deck

Compact Scalping

Our QE241 is the most compact model in the heavy duty scalper range. It has been designed for the smaller operator who requires a high performing, versatile unit with a smaller operating footprint that is easy to transport. We have designed the QE241 with a highly aggressive 11' x 4' / 3.35 x 1.24 m double deck screenbox for increased screening efficiency. This features a banana type bottom deck arrangement to further improve screening capacity. With a wide choice of screen media available, the QE241 can be configured as a highly versatile solution which can be configured to all the specific requirements of the operator. Its robust chassis has been designed to accommodate its two-way or three-way split versions, all built in a robust configuration and the experience features a model that allows for quick changeover of screen media.


Standard Features Include

Heavy duty screen box with uniquely high throw and aggressive action Hydraulic screen separation to allow easy integrated inspection Available in 2-way or 3-way split configurations Hydraulic oil cooler fitted as standard Designed for efficient fuel economy and low operating costs Fully compliant with all current safety regulations
