QE141 Sandvik Screener Specs, Dimensions & Technical Data - 2015 - 2026

Weight: 20t – Transport length: 8.79m – Transport width: 2.7m – Transport height: 3.1m – Plant type: RM – Screen width: 2.2m…

Weight: 20t – Transport length: 8.79m – Transport width: 2.7m – Transport height: 3.1m – Plant type: RM – Screen width: 2.2m

Check out detailed dimensions, specifications, information and technical data for Sandvik QE141 screener manufactured between 2015 - 2026. Get more in-depth insight with Sandvik QE141 screening machine. See information, like: Weight: 20t – Transport length: 8.79m – Transport width: 2.7m – Transport height: 3.1m – Plant type: RM – Screen width: 2.2m and more.

Mobile Screening Plants Sandvik QE141

Visit Sandvik live at

Technical specs - QE141 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
8.79 m
Transport width
2.7 m
Transport height
3.1 m
Plant type
RM
Screen width
2.2 m
Screen length
4.2 m
Drive
D/Hy
Drive power
74.5 kW
Maximum Number of screens
4
Hopper capacity
7.5 m³
Main conveyor width
1200 mm
Side conveyor width
700 mm
Model series
QE

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Sandvik QE141 overview

Screening Deck

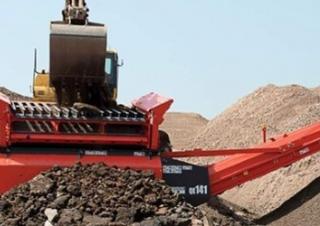

The QE141 Scalper

The QE141 is the latest version of the world’s first revolutionary track mounted scalper. Designed as a multipurpose machine, the QE141 can scalp large infeed materials, yet also double as a fine grading screen for a wide range of materials including topsoil, waste and crusher run. Powered by a fuel efficient, low revving CAT engine it is fitted with a heavy duty double deck vibrating grid and can be fed easily by a wheel loader, excavator, grab or a crusher. The QE141 is one of the most versatile, user-friendly mobile scalpers on the market and its multipurpose “bullet-proof” design makes it ideal for quarry operators or contractors in need of a compact, reliable and truly mobile solution to their screening requirements.


Features / Options

Key benefits

Massive stockpiling capability Independent feeder and main conveyor drives User-friendly colour-coded control panel with sequential start up for ease of operation Hydraulically opening side doors and powerpack swing out facility for ease of maintenance Radio remote control tracking and tipping grid functions Easily transported and manoeuvred with minimal set-up time Fully compliant with the latest safety regulations
