QA331 Sandvik Screener Specs, Dimensions & Technical Data - 2017 - 2022

Weight: 27.05t – Transport length: 15.343m – Transport width: 3m – Transport height: 3.4m – Plant type: RM – Screen width: 1.524m…

Weight: 27.05t – Transport length: 15.343m – Transport width: 3m – Transport height: 3.4m – Plant type: RM – Screen width: 1.524m

Check out detailed dimensions, specifications, information and technical data for Sandvik QA331 screener manufactured between 2017 - 2022. Get more in-depth insight with Sandvik QA331 screening machine. See information, like: Weight: 27.05t – Transport length: 15.343m – Transport width: 3m – Transport height: 3.4m – Plant type: RM – Screen width: 1.524m and more.

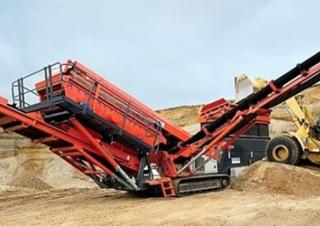

Mobile Screening Plants Sandvik QA331

Technical specs - QA331 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.05 t
Transport length
15.343 m
Transport width
3 m
Transport height
3.4 m
Plant type
RM
Screen width
1.524 m
Screen length
4.267 m
Drive
D/Hy
Drive power
74.5 kW
Maximum Number of screens
2
Hopper capacity
6.6 m³
Main conveyor width
1050 mm
Side conveyor width
650 mm
Model series
QA

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

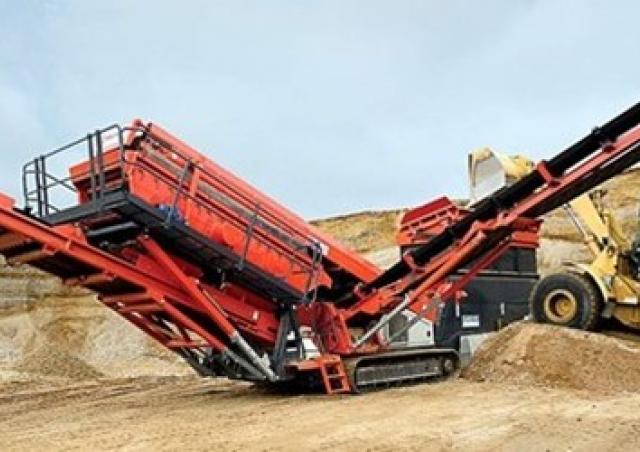

Sandvik QA331 overview

Screening Deck

Features Include

Screen box throw adjustable from 6 - 8 mm for precise controlWrap around folding walkways for operator safetyHydraulic raise/lower on main conveyorUnique hydraulic raise/lower on screenBanana effect double deck screen that can produce a cleaner, higher quality productDiesel engine for maximum fuel economy and low operating costs
