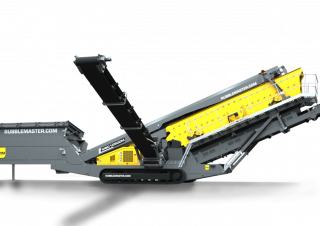

Rubble Master MSC 10500M
- Weight:
- 37.5 t
- Transport length:
- 18.86 m
- Transport width:
- 3 m
- Transport height:
- 3.5 m
.png)

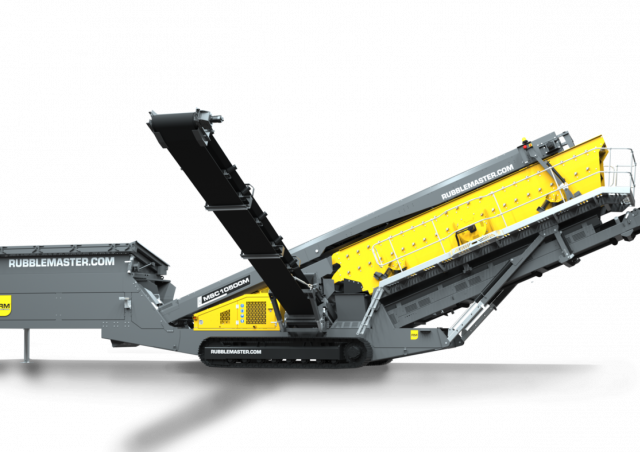

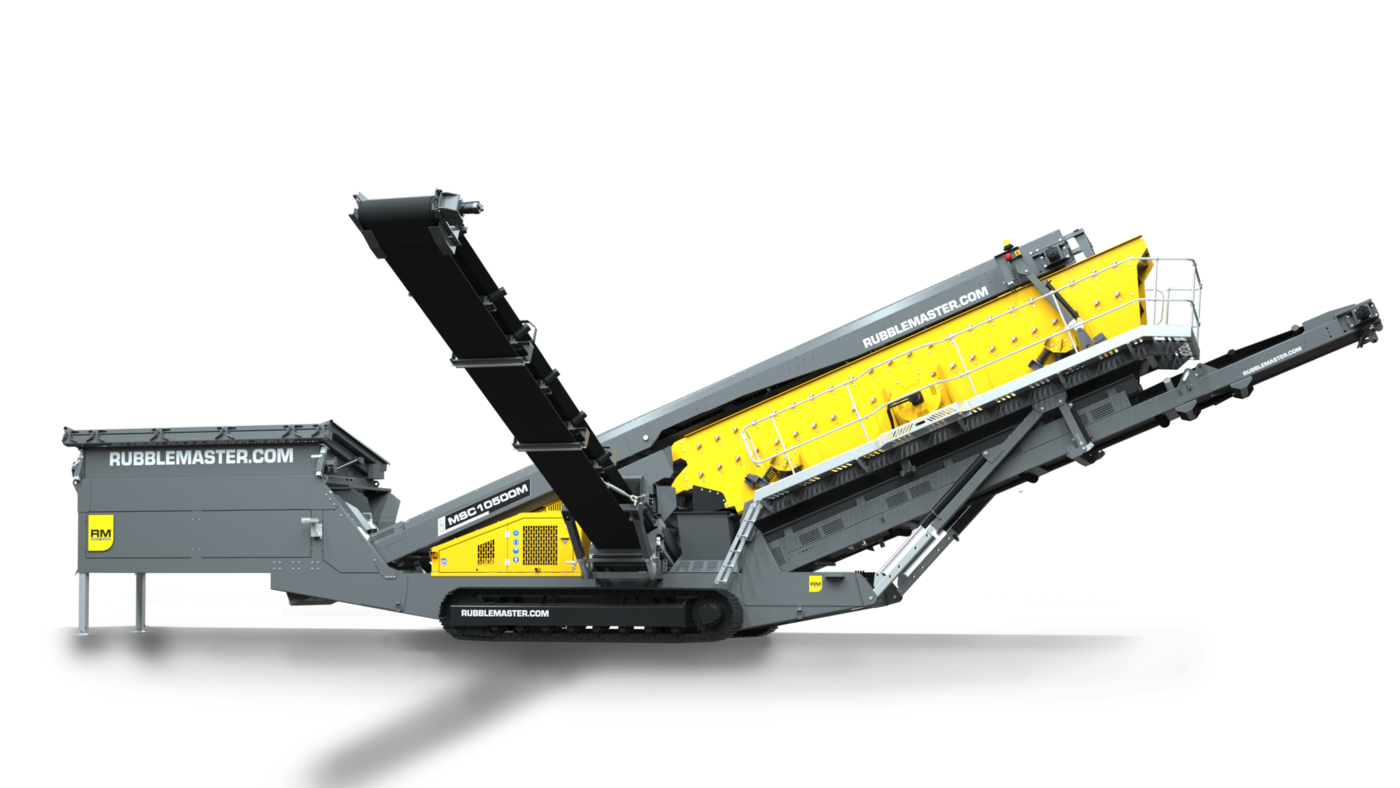

Rubble Master MSC 10500M screener specs & technical data (2021 - 2025)
.png)
Technical specs - MSC 10500M Rubble Master
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 37.5 t
- Transport length
- 18.86 m
- Transport width
- 3 m
- Transport height
- 3.5 m
- Type of screen
- MS
- Plant type
- RM
- Screen width
- 1.525 m
- Screen length
- 6.7 m
- Drive
- D
- Drive power
- 97 kW
- Maximum Number of screens
- 3
- Hopper capacity
- 9.2 m³
- Main conveyor width
- 1050 mm
- Side conveyor width
- 800 mm
- Model series
- MSC
Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container
