Chieftain 2200 Powerscreen Screener Specs, Dimensions & Technical Data - 2017 - 2026

Weight: 35.35t – Transport length: 19.79m – Transport width: 3m – Transport height: 3.55m – Type of screen: MS – Plant type: RM…

Weight: 35.35t – Transport length: 19.79m – Transport width: 3m – Transport height: 3.55m – Type of screen: MS – Plant type: RM

Check out detailed dimensions, specifications, information and technical data for Powerscreen Chieftain 2200 screener manufactured between 2017 - 2026. Get more in-depth insight with Powerscreen Chieftain 2200 screening machine. See information, like: Weight: 35.35t – Transport length: 19.79m – Transport width: 3m – Transport height: 3.55m – Type of screen: MS – Plant type: RM and more.

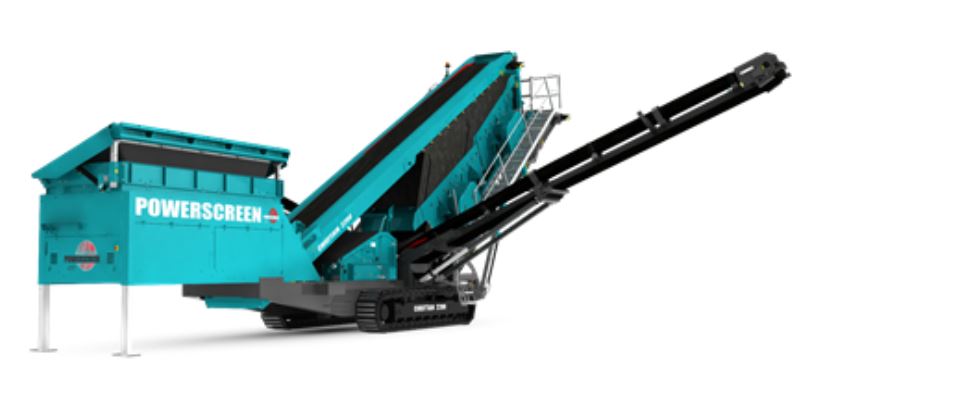

Mobile Screening Plants Powerscreen Chieftain 2200

Technical specs - Chieftain 2200 Powerscreen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.35 t
Transport length
19.79 m
Transport width
3 m
Transport height
3.55 m
Type of screen
MS
Plant type
RM
Screen width
1.55 m
Screen length
6.6 m
Drive power
83 kW
Hopper capacity
8 m³
Main conveyor width
1050 mm
Side conveyor width
800 mm
Model series
Chieftan

More technical details, like: drive, maximum number of screens are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Powerscreen Chieftain 2200 overview

Screening Deck

Chieftain 2200

The Powerscreen Chieftain 2200 is designed for operators who require large volumes of high specification products with maximum versatility. The Chieftain 2200 has two highly versatile double deck screenboxes which provide a total screening area of 19.5m². It has a revolutionary patent pending drive system which allows switching between 2 and 4 bearing with bolt-on parts. The maximum variability of the Chieftain offers improved capabilities over its class rivals, especially when trying to make high specification aggregate. User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility. Its high aggression screenboxes handle dirty, sticky material with ease.
