S5H Mesda Screener Specs, Dimensions & Technical Data - 2009 - 2026

Weight: 29.6t – Transport length: 14.19m – Transport width: 3m – Transport height: 3.2m – Type of screen: GS – Plant type: RM…

Weight: 29.6t – Transport length: 14.19m – Transport width: 3m – Transport height: 3.2m – Type of screen: GS – Plant type: RM

Check out detailed dimensions, specifications, information and technical data for Mesda S5H screener manufactured between 2009 - 2026. Get more in-depth insight with Mesda S5H screening machine. See information, like: Weight: 29.6t – Transport length: 14.19m – Transport width: 3m – Transport height: 3.2m – Type of screen: GS – Plant type: RM and more.

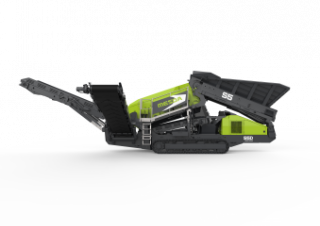

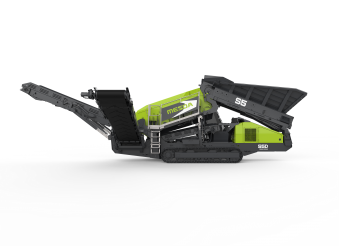

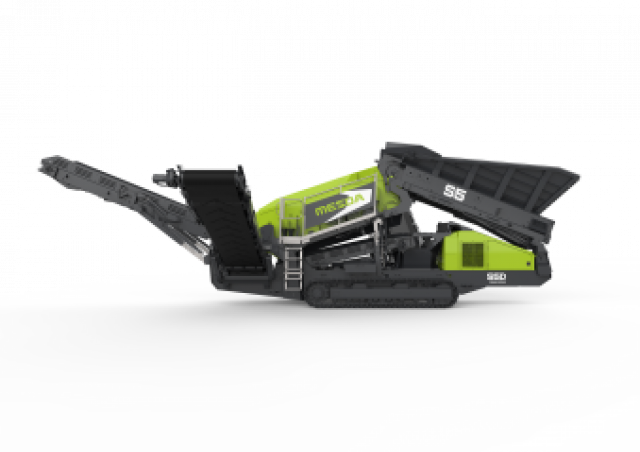

Mobile Screening Plants Mesda S5H

Technical specs - S5H Mesda

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.6 t
Transport length
14.19 m
Transport width
3 m
Transport height
3.2 m
Type of screen
GS
Plant type
RM
Screen width
1.25 m
Screen length
3.6 m
Drive
H
Drive power
129 kW
Maximum Number of screens
2
Hopper capacity
6.5 m³
Main conveyor width
1200 mm
Side conveyor width
900 mm
Model series
S

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container
