123 Sizer McCloskey Screener Specs, Dimensions & Technical Data - 2011 - 2026

Name: McCloskey 123 Sizer Mobile Screening Plants
Brand: McCloskey

Weight: 23.5t – Transport length: 11.95m – Transport width: 2.6m – Transport height: 3.36m – Type of screen: MS – Plant type: RM…

Weight: 23.5t – Transport length: 11.95m – Transport width: 2.6m – Transport height: 3.36m – Type of screen: MS – Plant type: RM

Check out detailed dimensions, specifications, information and technical data for McCloskey 123 Sizer screener manufactured between 2011 - 2026. Get more in-depth insight with McCloskey 123 Sizer screening machine. See information, like: Weight: 23.5t – Transport length: 11.95m – Transport width: 2.6m – Transport height: 3.36m – Type of screen: MS – Plant type: RM and more.

Mobile Screening Plants McCloskey 123 Sizer

123 Sizer

Years of manufacture: 2011—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - 123 Sizer McCloskey

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.5 t

Transport length: 11.95 m

Transport width: 2.6 m

Transport height: 3.36 m

Type of screen: MS

Plant type: RM

Screen width: 2.13 m

Screen length: 3.05 m

Drive: D

Drive power: 74 kW

More technical details, like: maximum number of screens, hopper capacity, main conveyor width, side conveyor width, model series are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

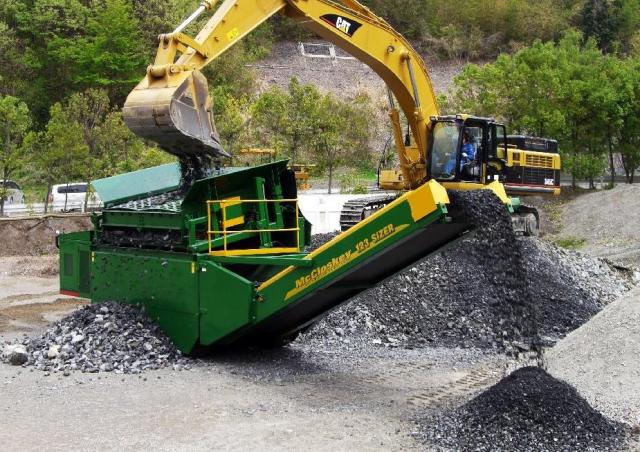

McCloskey 123 Sizer overview

Screening Deck

123 Sizer Heavy Duty Scalping Screen

The McCloskey 123 Sizer is ideal for quarry and mining applications where only very heavy duty equipment will meet your needs. With a high strength bolted construction screen box, and a high tensile steel punch plate, the 123 Sizer has the ability to handle the heaviest of materials.

Features & benefits

Durable - Wear resistant, high tensile steel punch plate on top deck prolongs screen life. End tensioned bottom deck creates ease of screen change. Tough Side Plate - 25mm (1") plate on the side of the machine eliminates any damage from material build up. Screenbox - Heavy duty all bolted screen box, and the largest range of working angles. Track Protection - Complete track recess protected by cover plate, eliminates any potential damage to the tracks. Separate Feeder and Incline Belt - Separate feed provides more controlled feed, reduced blockage and stoppages. Heavy duty 48" wide separate incline belt allows for maximum stockpile.

Motor

Durability

Branded components throughout. Heavy duty hardox steel. High efficiency diesel hydraulic system allows higher throughput and lower fuel consumption.
