HEM 700 D Jenz HEM 700 D Specifications & Technical Data (2000—2019)

Model rating
1,00 / 10

Weight (w/o. accessory): 17500kg – Engine Manufactor: MTU – Engine type: D – Travel speed: 80km/h – Engine power: 460kW – Output: 220m³/h

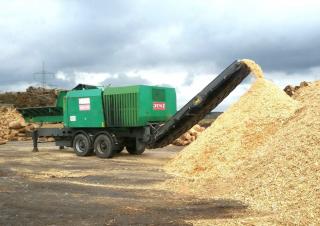

Waste Disposal Wood Chippers Jenz HEM 700 D

Technical specs - HEM 700 D Jenz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight (w/o. accessory)
17500 kg
Engine Manufactor
MTU
Engine type
D
Travel speed
80 km/h
Engine power
460 kW
Output
220 m³/h
Drive
M
Outlet
1000 mm
Attachment
FG
Intake
W
Model series
HEM

More technical details, like: engine manuf., dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Basic model with blade and mounting resp. trailing device with power take-off: G incl. articulated shaft, M incl. motor, H incl. hydraulic motor and hoses

Special equipment

conveyor belt
No
Self-propelled
No
Crawler
No
Fast running axle up to 80 km/h
Yes

Download datasheets (PDF)

Jenz HEM 700 D overview

Chipping unit

Optimum cost-efficiency

The upper intake roller with its secure, low-maintenance, built-in gearbox, meets the current standards at JENZ. No time-consuming cleaning tasks are necessary due to the design of the machine stand (no slots in side sections). Efficient operation on busy roads and over large areas is ensured by the reliable collecting system for "spill-over" material. The reduced speed in VARIO mode guarantees an optimum balance between chip output and fuel consumption with regards to cost-efficiency. Additionally, there is an optional, energy-saving and low-wear discharge of material via conveyor belts, allowing the full power of the engine to be applied to chipping tasks.


Chassis

Universal in every respect

Various types of build are possible for the machine, to guarantee the best possible chipping performance: Fixed structure on a tandem-axle chassis (fixed in position or optionally rotatable) with a low-maintenance, enclosed toothed-belt swivel unit Four-axle lorry attachment Can be mounted on a track roller set


Dimensions

Application areas

Intended for the breakup of whole trees up to 700 mm in diameter. The robust steel-link conveyor and the loading length of 3.5 m facilitate the loading of forest residue and cut shrubbery.
