Biber 2/14 Eschlböck Biber 2/14 Specifications & Technical Data (1996—2013)

Wood Chipping Expertise

In just over 2 decades, we have turned ourselves into specialists in accurate wood chipping. With our unique wood chip exchange project on the Internet, we aim to live up to our responsibility for our environment and our future.

Impressive quality and performance

The outstanding features of this series include the large feed chute, a powerful in-feed system and fully hydraulic drive, with its own hydraulic system, independent of the towing vehicle, and the high centrifugal mass of the disc wheel, with specially designed impeller blades for a greater discharge range.

Accurate chipping

A removable screen made of special knife-grade steel guarantees accurate and uniform chipped material, ideal for using in automatic wood heating systems.

With interchangeable screens for accurate chip sizes

Having interchangeable screens means that different chip sizes can be accurately produced in accordance with Austrian standard 7133 and EN 14961. The two feed screws and the powerful blower give the wood chips a greater discharge range.

Fine or coarse chips

The chipper drum is designed to be smooth running and particularly energy-saving. With its robust knives or alternatively a system of blades, depending on how you set them and the size of the screen, you can produce either accurately sized wood particles or coarser chips for industry.

Faster throughput, better chip quality

Having two screens increases the area of the screen to 1.52 m². This large screen area speeds up the flow of materials after chipping, increasing the volume of chips that can be produced. The reduced friction also cuts down the volume of very fine particles, giving you better chip quality.

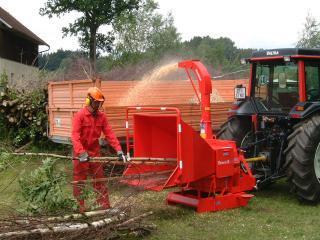

Biber 2/12 and 2/14 with PTO drive

Ideal in horticulture and agriculture, the sophisticated and practical design is the result of our many years of experience.

Powerful blower and wide discharge range

A powerful blower, with easily replaceable parts, give these machines big discharge ranges and make them economical even when processing large quantities.

Smooth discharge

The large blower with a diameter of 1.54 m suffers less wear and tear and ensures that the discharge range is greater and the chipped material is ejected more smoothly.

Wood Splitting and Drying

The splitter can also be supplied mounted on a logging trailer or on the 3-point linkage of the KRONOS 5000 crane or on a 3-point linkage for front or rear mounting on the towing vehicle. After splitting, the wood dries well, so that very high-quality chippings can be produced.

Biber 2/12 Motor

Ideal for gardens and parks with narrow access routes. (Total machine width 1.35 m) Because of its technical specifications, this little machine is very highly rated among professional operators.

Ideal for landscape gardening and producing wood chips

Smart-looking, uniform chippings are also ideal as ground cover in parks and garden areas. So Biber is the ideal machine for both landscape gardening and producing chippings.

The right machine for every job

Biber 5 K: Short chipper for producing accurately sized chippings for automatic wood heating systems or for composting. Adjustable chip length from 0.5 to 2.5 cm.Biber 5 KL: Combined short and long chipper, easy to switch from shreds to chips. Variable chip length from 0.5 to 12 cm.Biber 5 L: Long chipper for producing industrial and other long chips. Chip length up to 12 cm.Biber 5 Motor: Driven by mounted Hatz Silent diesel engine. Adjustable chip length from 0.5 to 2.5 cm.

Chipping and splitting

The Biber 80 is one of the most powerful heavy-duty chippers on the market. It can handle wood of all types up to 55 cm in diameter, and above that the Spaltbiber can be used. Oversized logs can be split lengthways without shortening and fed into the chipper directly in a single process for processing into chips. No logs left over now!

Accurate stream of chips

The 5.20 m high discharge chute for the chips is ideal for directly filling even high trailers or containers. It is hydraulically height-adjustable within a range from 2.6 m to 5.2 m. By using the flap above the stream, it can even be directed upwards or downwards to ensure that every corner of the container is filled.

Safe and practical

The safety bar, with forward, reverse and emergency stop positions, makes the machines practical to use and ensures maximum safety during operation.

Safe and reliable

The wide, ergonomically designed feed hopper makes your work easier. Safety switching bars on the sides and upper edge of the hopper make loading safe and reliable, even with unwieldy branches of shrubs and trees.

Biber 7 plus – safety devices for loading by hand or crane

Without having to dismantle anything, the manual safety switching bar is protected simply by putting the crane extension hopper in position. When loading by crane, all functions can be conveniently controlled by wired remote control from the towing vehicle. Biber 7 plus offers the convenience of the big machines.
