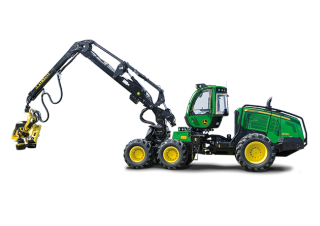

John Deere 1270 G Specifications & Technical Data (2015-2025)

Operating weight: 20.65t – Crane manufacturer: John Deere – Type of crane: CH 7 – Back tyres: 600/710 – Front tyres: 600/710/800 – Aggregate manufacturer: John Deere

Technical specs - 1270 G John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Operating weight
20.65 t
Crane manufacturer
John Deere
Type of crane
CH 7
Back tyres
600/710
Front tyres
600/710/800
Aggregate manufacturer
John Deere
Aggregate type
H413. H414. H480 C. H415. H270 - Series II
Engine type
D
Engine power
200 kW
No. of tyres
6
Max. Reach horizontal
8.6 m
Boom Lifting Torque
197 kN
Transport length
12.27 m
Transport width
3.086 m
Transport height
3.81 m
Model series
G

More technical details, like: engine manuf., dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Basic model with crane and aggregate

Special equipment

Track
Yes
