W04 Linde Tow Tractor Specs & Dimensions (2017 - 2025)

Trailer load: 1t – Standard tyres: 1x+2/2 – Transport length: 2m – Transport width: 0.6m – Transport height: 1m – Net load: 1t…

Trailer load: 1t – Standard tyres: 1x+2/2 – Transport length: 2m – Transport width: 0.6m – Transport height: 1m – Net load: 1t

W04 tow tractor model manufactured by Linde, production years (2017 - 2025). Explore detailed W04 tug tractor specs: technical details, table charts and data sheets to download. Check also the other models produced by Linde.

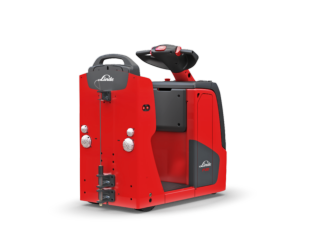

Tow tractors Linde W04
Tow tractors Linde W04
Tow tractors Linde W04
Tow tractors Linde W04

Technical specs - W04 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Trailer load
1 t
Standard tyres
1x+2/2
Transport length
2 m
Transport width
0.6 m
Transport height
1 m
Net load
1 t
Drive power
1 kW
Weight
0.73 t
Battery weight
0.185 t
Battery capacity
24/200 V/Ah
Wheel base
1.487 m
Turning radius
1 m
Travel speed with / without load
8/8 km/h
Model series
W

More technical details, like: platform length, platform width are available in the full technical specs.

Special equipment

Cabin
No
Codriver seat
Yes

Download datasheets (PDF)

Linde W04 overview

Performance

Performance

With only 600 mm width and its high maneuverability it is perfectly suited for towing applications in narrow aisles. The maintenance-free 1.5 kW AC drive motor assures smooth and powerful acceleration for loads up to 2000 kg.


Reliability

The robustness of steering control and high-quality steel chassis ensure reliable operation. Optional lights are recessed in cover, adjustable electronic components also contribute to increased truck life.


Serviceability

Efficient in operation and highly cost effective, external CAN bus pin enables all truck data to be accessed for service inspection without removing any cover. Easy accessibility to all components and the use of maintenance-free AC motors contribute to fast service times.


Safety

Safety

The chassis design assures that the operator remains well protected within the truck contours while driving. The ergonomic wrap grip steering control incorporates a wrap-around hand guard. For additional safety, the tractor and load transporter are available with knee protection.


Basic dimensions

Comfort

A foldable and height adjustable seat offers the operator more comfort while driving long distances. A higher ground clearance is available for indoor/outdoor application.
