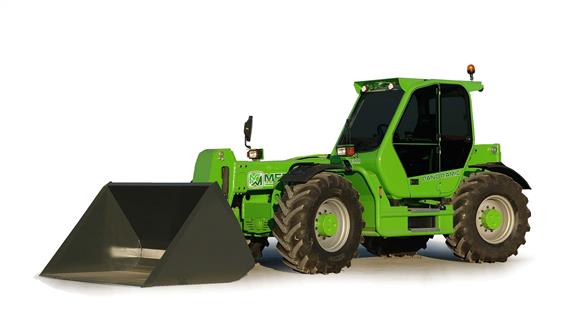

Panoramic P 75.9 CS Merlo Telehandler Specs & Dimensions (2016 - 2017)

Name: Merlo Panoramic P 75.9 CS Telehandlers
Brand: Merlo

The Merlo Panoramic P 75.9 CS is a telehandler manufactured by Merlo from 2016 to 2017. It has a weight of 11.4 tons and a transpo…

The Merlo Panoramic P 75.9 CS is a telehandler manufactured by Merlo from 2016 to 2017. It has a weight of 11.4 tons and a transport length of 5.12 meters. The nominal load at the center of gravity is 7.5 tons, and it has a lifting height of 8.6 meters. The capacity at full forward reach is 2.5 tons, and the center of gravity is located at 600 millimeters. It has a travel speed of 40 km/h and a maximum climbing ability of 45 percent. The capacity at full lift height is 6.5 tons. The transport width is 2.42 meters, and the transport height is 2.5 meters. Special equipment includes inclination correction and StVZO equipment.

Panoramic P 75.9 CS

Years of manufacture: 2016—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Panoramic P 75.9 CS Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 7.5 t

Model series: Panasonic

Centre of gravity: 600 mm

Standard tyres: 17.5-25 22 PR

Transmission type: HY

Max. Reach horizontal: 4.6 m

Capacity at full forward reach: 2.5 t

Lifting height: 8.6 m

Capacity at full lift height: 6.5 t

Weight: 11.4 t

Transport length: 5.12 m

Transport width: 2.42 m

Transport height: 2.5 m

Travel speed: 40 km/h

max. climbing ability: 45 %

Engine manuf.: Deutz

Engine type: TCD4.1 L4

Engine power: 115 kW

Displacement: 4.1 l

Revolutions at max torque: 1600 rpm

Emission level: 3b

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: Yes
Side displacement: No

Download datasheets (PDF)

Panoramic P 75.9 CS Merlo Specification for Europe (EN)
