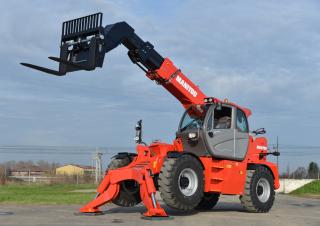

MHT 1490 Manitou Telehandler Specs & Dimensions (2017 - 2021)

The Manitou MHT 1490 is a telehandler manufactured by Manitou from 2017 to 2021. It has a weight of 20.8 tons and a transport leng…

The Manitou MHT 1490 is a telehandler manufactured by Manitou from 2017 to 2021. It has a weight of 20.8 tons and a transport length of 6.71 meters. The maximum horizontal reach is 9.55 meters, and it can lift loads up to 9 tons at the nominal center of gravity. The lifting height is 14 meters, and it has a capacity of 1.5 tons at full forward reach. The center of gravity is located at 600 millimeters. At full lift height, it can handle loads up to 4.5 tons. The transport width is 2.5 meters, and the transport height is 3 meters.

Telehandlers Manitou MHT 1490
Telehandlers Manitou MHT 1490
Telehandlers Manitou MHT 1490
Telehandlers Manitou MHT 1490
Telehandlers Manitou MHT 1490
Telehandlers Manitou MHT 1490

Visit Manitou live at

Technical specs - MHT 1490 Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
9 t
Model series
MHT
Centre of gravity
600 mm
Standard tyres
17.5 R 25
Transmission type
HY
Max. Reach horizontal
9.55 m
Capacity at full forward reach
1.5 t
Lifting height
14 m
Capacity at full lift height
4.5 t
Weight
20.8 t
Transport length
6.71 m
Transport width
2.5 m
Transport height
3 m
Engine manuf.
Mercedes-Benz
Engine type
OM934 LA
Engine power
129 kW
Displacement
5.1 l
Revolutions at max torque
1600 rpm
Max. torque
750 Nm
Emission level
Tier 4 f

More technical details, like: travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, no. of cylinders, cylinder bore x stroke...

More technical details, like: travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, no. of cylinders, cylinder bore x stroke, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, dimension configuration, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Buy full specs

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
