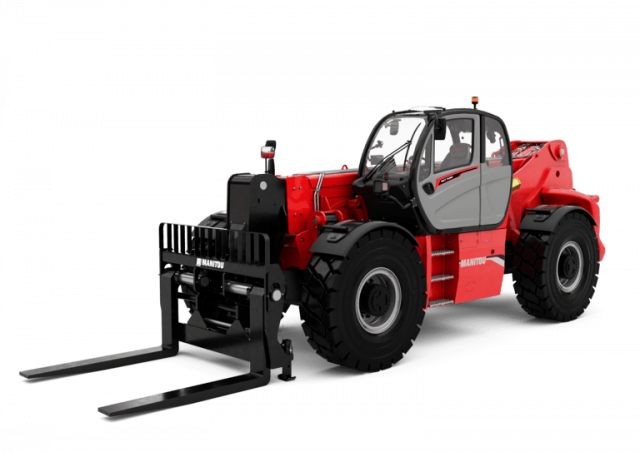

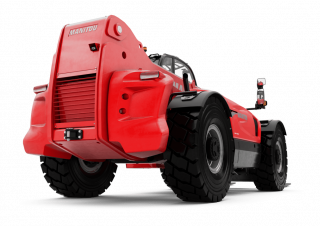

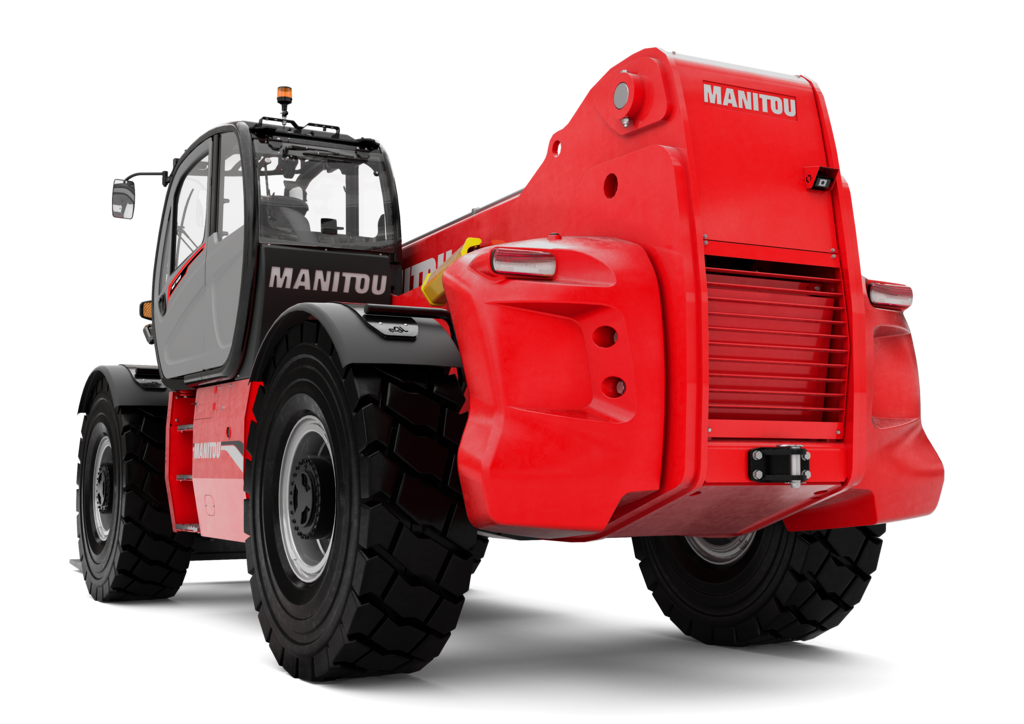

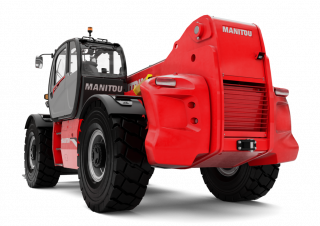

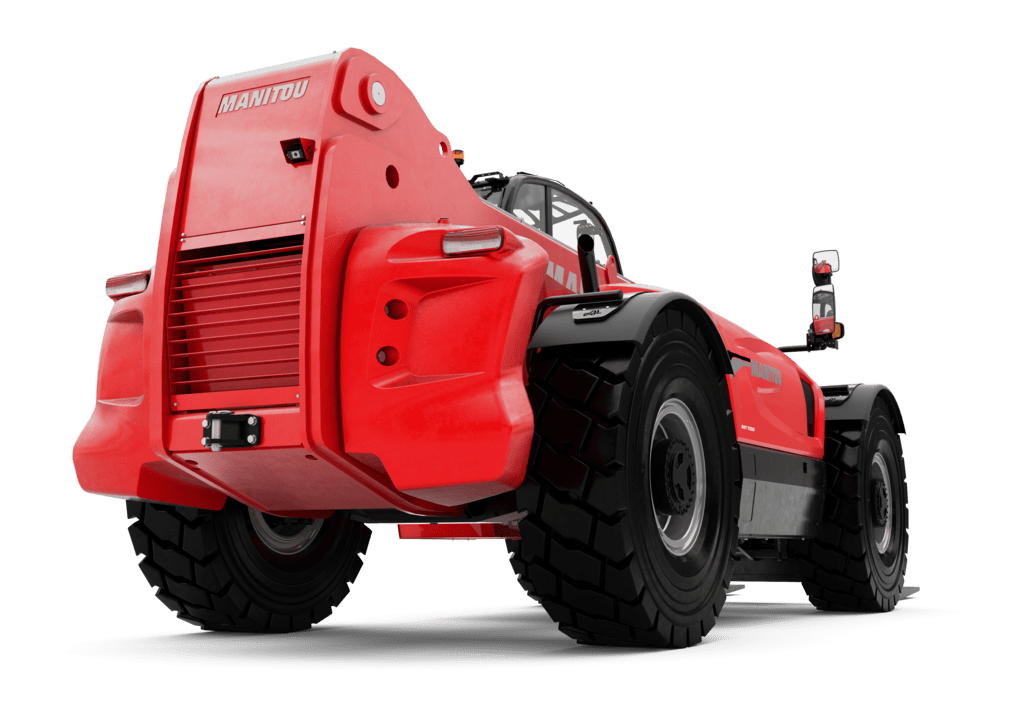

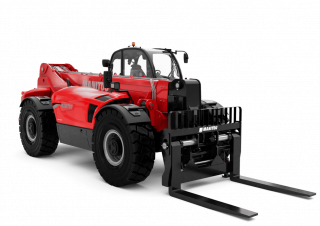

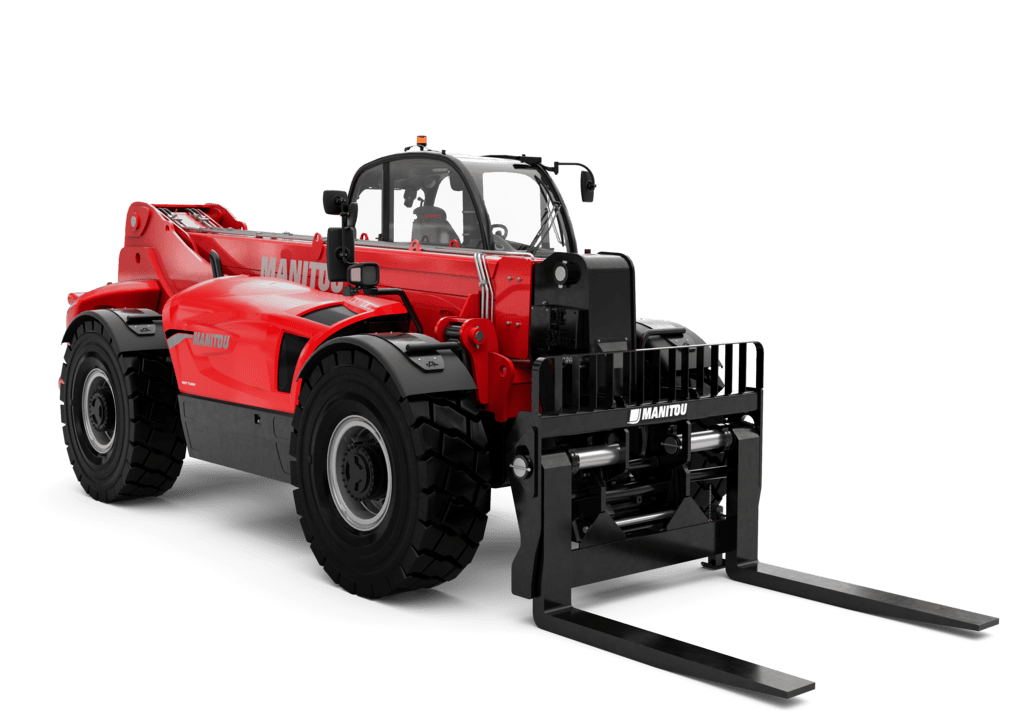

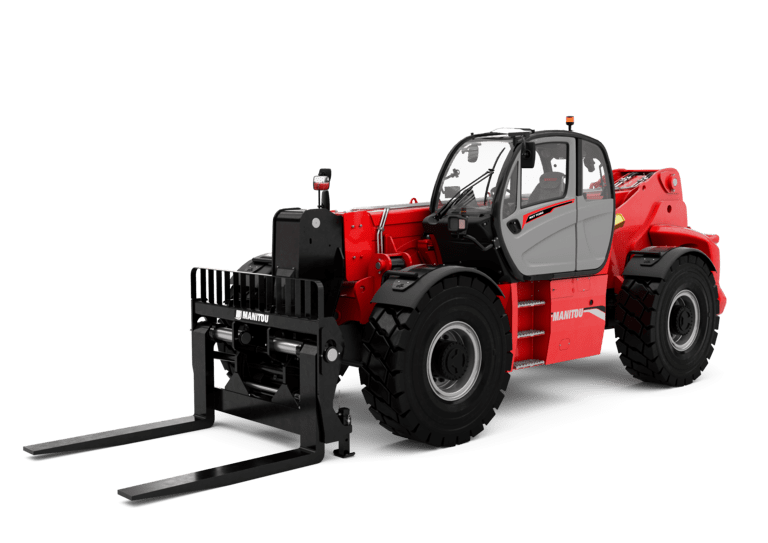

Manitou MHT 11250-210 Y telehandler specs & dimensions (2021 - 2025)

The Manitou MHT 11250-210 Y is a telehandler manufactured since 2021. It has a weight of 31.61 tons and a transport length of 8.92…

The Manitou MHT 11250-210 Y is a telehandler manufactured since 2021. It has a weight of 31.61 tons and a transport length of 8.92 meters. With a maximum horizontal reach of 6 meters, it can handle a nominal load of 24.99 tons at the center of gravity, and lift up to a height of 10.6 meters. At full forward reach, it has a capacity of 7.5 tons, and at full lift height, it can handle up to 15 tons. The telehandler has a center of gravity at 900 mm and a travel speed of 25 km/h. Its transport width is 2.84 meters, and the transport height is 3.03 meters.

Technical specs - MHT 11250-210 Y Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
24.99 t
Model series
MHT
Centre of gravity
900 mm
Standard tyres
18.00 R25
Transmission type
HY
Max. Reach horizontal
6 m
Capacity at full forward reach
7.5 t
Lifting height
10.6 m
Capacity at full lift height
15 t
Weight
31.61 t
Transport length
8.92 m
Transport width
2.84 m
Transport height
3.03 m
Travel speed
25 km/h
Engine manuf.
Yanmar
Engine type
4TN107FTT
Engine power
155 kW
Displacement
4.567 l
Revolutions at max torque
1500 rpm
Max. torque
805 Nm
No. of cylinders
4
Cylinder bore x stroke
107x127 mm
Emission level
V

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
