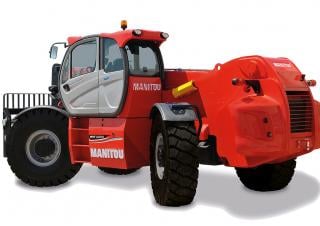

MHT 10230 Manitou Telehandler Specs & Dimensions (2017 - 2020)

The Manitou MHT 10230 is a telehandler manufactured from 2017 to 2020. It has a weight of 29.3 tons and a transport length of 8.8 …

The Manitou MHT 10230 is a telehandler manufactured from 2017 to 2020. It has a weight of 29.3 tons and a transport length of 8.8 meters. The maximum horizontal reach is 5.8 meters, and it can lift loads up to 23 tons at the center of gravity. The lifting height is 9.65 meters, and it has a capacity of 6.4 tons at full forward reach. The center of gravity is located at 900 millimeters. The transport width is 2.85 meters, and the transport height is 3.05 meters.

Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230
Telehandlers Manitou MHT 10230

Visit Manitou live at

Technical specs - MHT 10230 Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
23 t
Model series
MHT
Centre of gravity
900 mm
Standard tyres
18.00 R 25
Transmission type
HY
Max. Reach horizontal
5.8 m
Capacity at full forward reach
6.4 t
Lifting height
9.65 m
Weight
29.3 t
Transport length
8.8 m
Transport width
2.85 m
Transport height
3.05 m
Engine manuf.
Mercedes-Benz
Engine type
OM934 LA E 4-3
Engine power
129 kW
Displacement
5.1 l
Revolutions at max torque
1600 rpm
Max. torque
750 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: capacity at full lift height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke...

More technical details, like: capacity at full lift height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, dimension configuration, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
