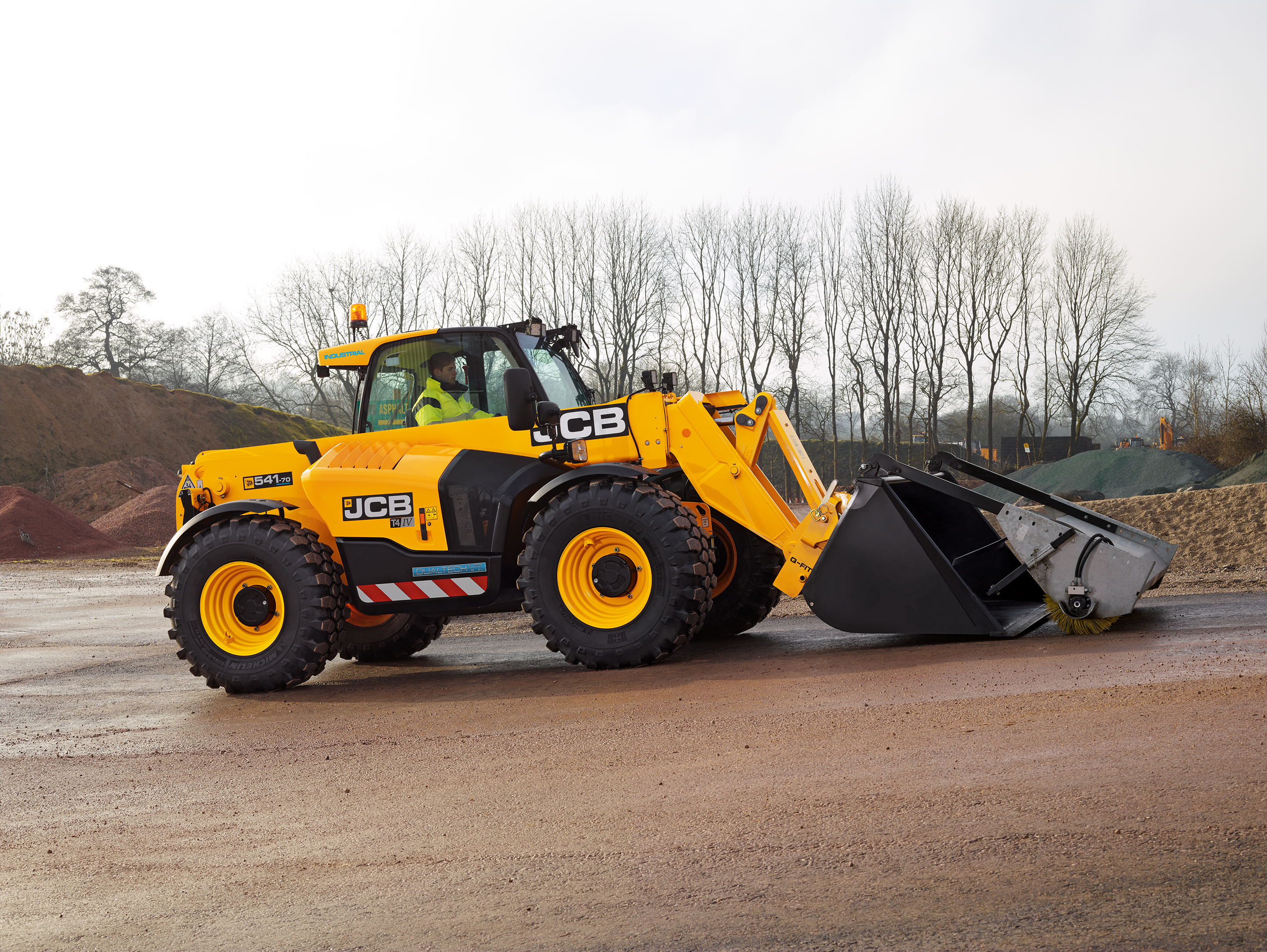

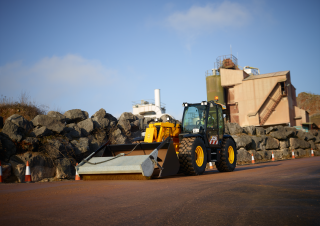

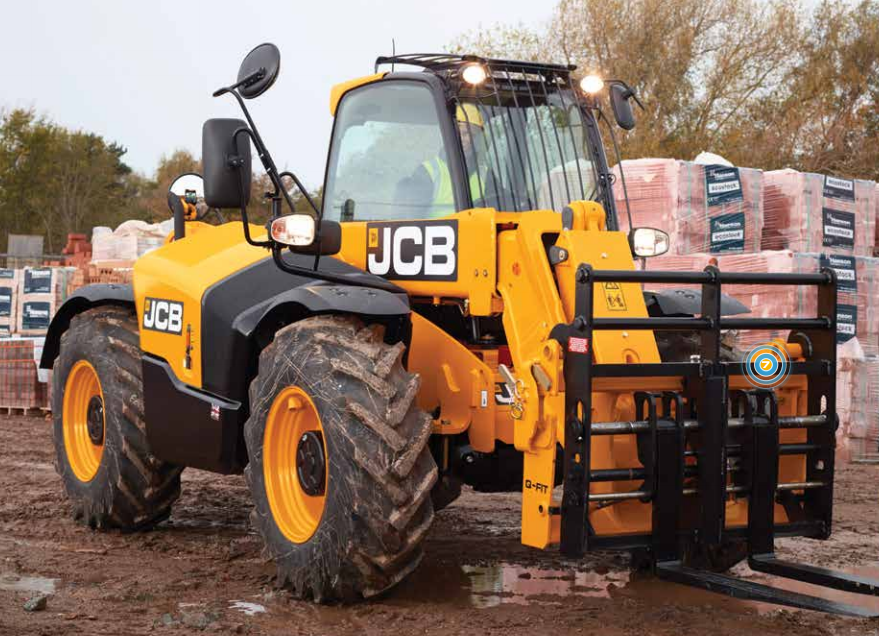

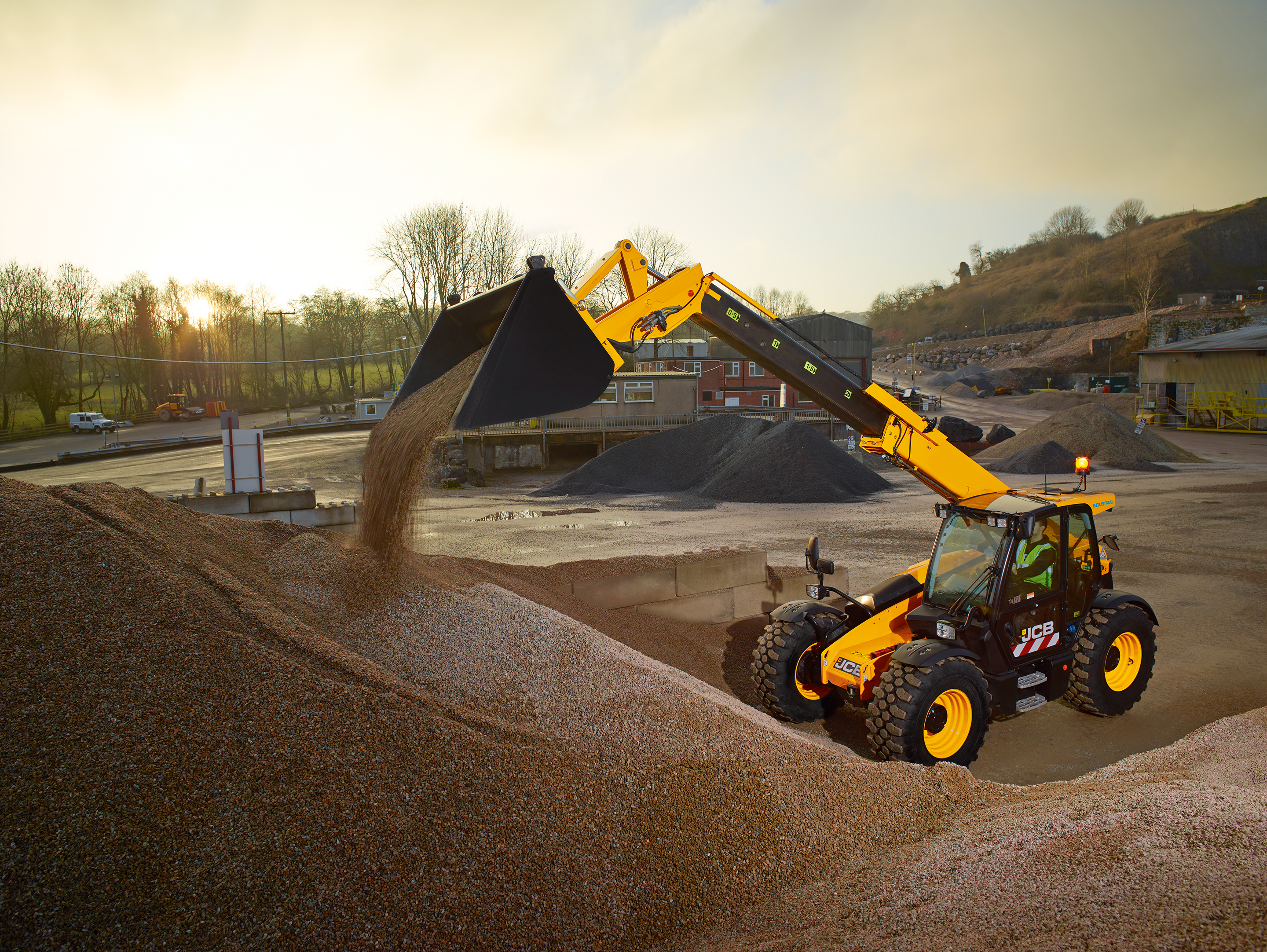

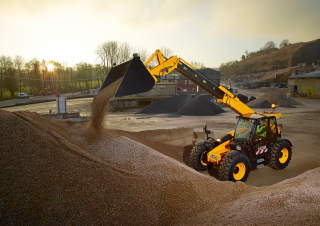

541-70 DS Plus JCB Telehandler Specs & Dimensions (2014 - 2019)

The JCB 541-70 DS Plus is a telehandler manufactured by JCB from 2014 to 2019. It weighs 8.22 tons and has a transport length of 4…

The JCB 541-70 DS Plus is a telehandler manufactured by JCB from 2014 to 2019. It weighs 8.22 tons and has a transport length of 4.99 meters. The travel speed is 20 km/h, and the transport width is 2.34 meters, with a transport height of 2.49 meters.

Technical specs - 541-70 DS Plus JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Model series
541
Standard tyres
15.5-25 12PR
Weight
8.22 t
Transport length
4.99 m
Transport width
2.34 m
Transport height
2.49 m
Travel speed
20 km/h
Engine manuf.
JCB
Engine type
EcoMax
Engine power
93 kW
Displacement
4.4 l
No. of cylinders
4
Cylinder bore x stroke
103x132 mm
Emission level
Euro III B

More technical details, like: nominal load at cog, centre of gravity, transmission type, max. reach horizontal, capacity at full forward reach, lifting height, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor...

More technical details, like: nominal load at cog, centre of gravity, transmission type, max. reach horizontal, capacity at full forward reach, lifting height, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
