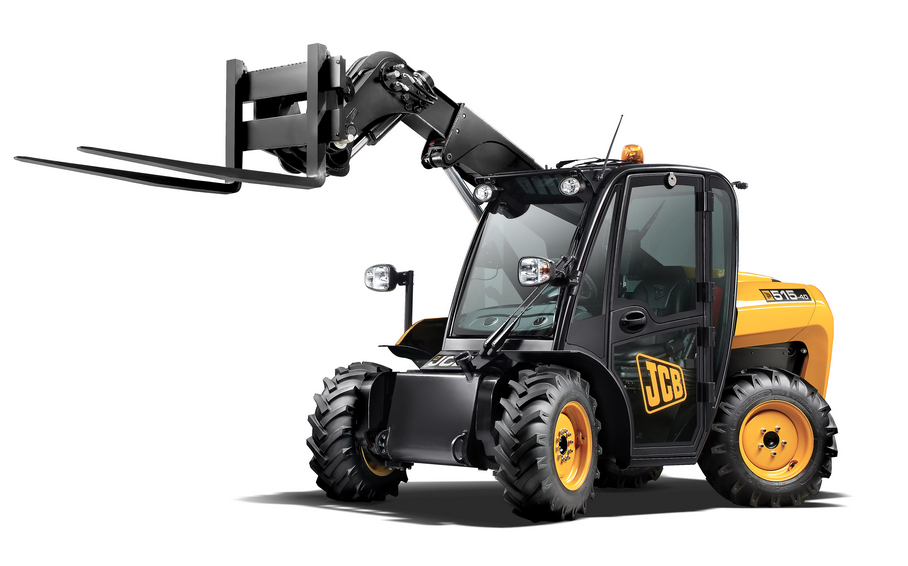

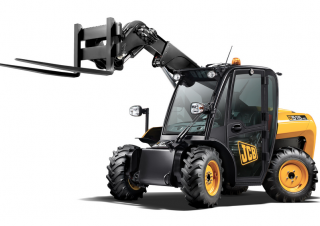

515-40 JCB Telehandler Specs & Dimensions (2004 - 2005)

Name: JCB 515-40 Telehandlers
Brand: JCB

The JCB 515-40 is a telehandler manufactured by JCB from 2004 to 2005. It weighs 4.15 tons and has a nominal load at the center of…

The JCB 515-40 is a telehandler manufactured by JCB from 2004 to 2005. It weighs 4.15 tons and has a nominal load at the center of gravity of 1.5 tons. The lifting height of this telehandler is 4 meters. It has a capacity of 0.75 tons at full forward reach and a capacity of 1.5 tons at full lift height. The center of gravity is located at 500 millimeters.

515-40

Years of manufacture: 2004—2005

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - 515-40 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 1.5 t

Model series: 515

Centre of gravity: 500 mm

Standard tyres: 10x16.5

Max. Reach horizontal: 2.59 m

Capacity at full forward reach: 0.75 t

Lifting height: 4 m

Capacity at full lift height: 1.5 t

Weight: 4.15 t

Engine manuf.: Perkins

Engine type: 404-22C

Engine power: 37.5 kW

More technical details, like: transmission type, transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

515-40 JCB Specification for Europe (DE)
